chirpstack-mcp-server

An MCP server for ChirpStack v4. It lets an AI agent (Claude Code, Claude Desktop, or any MCP client) manage a LoRaWAN network and — the part that matters while you are building a device application — debug devices live: queue a downlink, watch the uplinks and events as they arrive, iterate a payload codec, and inspect link quality, all from the coding session.

The server talks to ChirpStack's native gRPC API with a single API key. It carries no device- or vendor-specific logic.

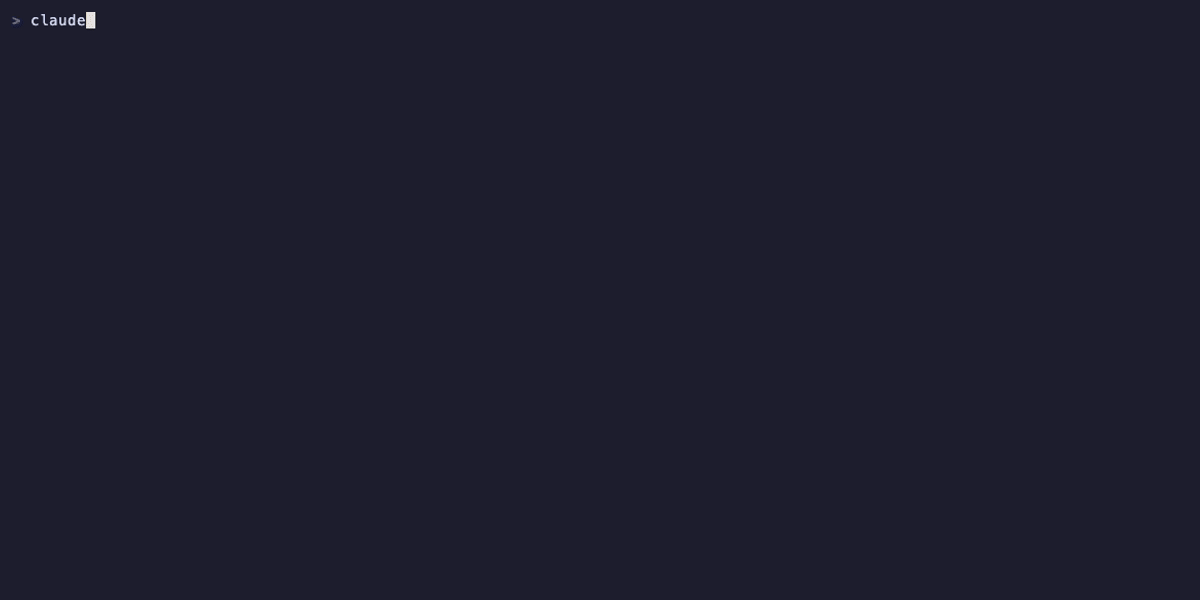

Claude Code fixes a payload decoder and verifies it on the next live uplink

Real, unedited Claude Code session (2.5× speed, only the ChirpStack MCP tools): the agent reads the device profile's codec, spots the disconnected-probe sentinel in a raw uplink, deploys a fix with profile_set_codec, then waits for the device's next uplink with wait_for_event and confirms the decoded object.

Install

uvx chirpstack-mcp-server        # run directly (needs uv: https://docs.astral.sh/uv/)
# or
pip install chirpstack-mcp-server

Configure

Variable	Required	Default	Meaning
`CHIRPSTACK_SERVER`	yes	—	`host:port` of the ChirpStack API (the web-UI port, usually `8080`)
`CHIRPSTACK_API_KEY`	yes	—	API key from ChirpStack → API keys (tenant or global admin)
`CHIRPSTACK_TOOLSETS`	no	`devices, debug, applications, profiles, gateways`	comma-separated toolsets, or `all`
`CHIRPSTACK_TLS`	no	`false`	use TLS instead of plain HTTP/2
`CHIRPSTACK_TRANSPORT`	no	`stdio`	`stdio` or `streamable-http`
`CHIRPSTACK_HTTP_PORT`	no	`8000`	port for `streamable-http` (bound to `127.0.0.1`)

Claude Code

claude mcp add chirpstack -e CHIRPSTACK_SERVER=192.168.1.10:8080 -e CHIRPSTACK_API_KEY=eyJ... -- uvx chirpstack-mcp-server

Claude Desktop / generic MCP config

{
  "mcpServers": {
    "chirpstack": {
      "command": "uvx",
      "args": ["chirpstack-mcp-server"],
      "env": {
        "CHIRPSTACK_SERVER": "192.168.1.10:8080",
        "CHIRPSTACK_API_KEY": "eyJ..."
      }
    }
  }
}

Toolsets

Tools are grouped so an agent only sees what it needs. Names are <toolset>_<verb>.

Toolset	Default	Tools
`devices`	yes	list, get, create, update, delete, set_keys, activate, deactivate, flush_dev_nonces, enqueue, queue_get, queue_flush, metrics
`debug`	yes	`server_info`, `capture_start`, `capture_read`, `capture_stop`, `capture_list`, `wait_for_event`, `device_recent_events`
`applications`	yes	list, get, create, update, delete, list_device_tags
`profiles`	yes	list, get, create, update, delete, `profile_set_codec`, list_vendors, list_adr_algorithms
`gateways`	yes	list, get, create, update, delete, metrics
`multicast`	no	group CRUD, add/remove device, enqueue, queue_list, queue_flush
`fuota`	no	deployment CRUD, start, add/remove/list devices, list_jobs
`integrations`	no	`integration_list/get/set/delete` — one generic set for all ten ChirpStack integration kinds; `integration_get` redacts stored credentials unless `include_secrets=true`
`tenants`	no	tenant CRUD, tenant users, API keys
`relay`	no	relay devices and relay gateways

Enable more with CHIRPSTACK_TOOLSETS=devices,debug,profiles,multicast or CHIRPSTACK_TOOLSETS=all. server_info is the first call an agent should make to check the connection and the API key; its chirpstack_version/regions fields may come back null/empty since ChirpStack only serves those to a logged-in user session, never to an API key.

Live debugging

ChirpStack keeps the last ~10 events per device and streams new ones. The debug toolset turns that into something an agent can use between tool calls:

capture_start(target, kind) opens a background stream (events or frames for a device, gateway_frames for a gateway) into a 500-item ring buffer and returns a session_id.
device_enqueue(dev_eui, f_port, data_hex=...) queues the downlink.
capture_read(session_id, since_seq) returns everything that arrived since the last read — decoded uplinks (f_port, f_cnt, data_hex, codec object, per-gateway rssi/snr), ack/txack for the downlink, log entries when something went wrong.
capture_stop(session_id) when done. Idle sessions expire after 30 minutes.

For quick looks: wait_for_event(dev_eui, timeout_s) blocks up to 60 s for the next live event — it only returns events newer than the moment it was called, never the history ChirpStack replays; device_recent_events(dev_eui) returns that history without keeping a session.

Class A devices only receive a downlink after their next uplink; Class C devices get it right away.

Security notes

The API key is read from the environment and never appears in tool output. device_get hides root keys unless asked with include_keys=true.
device_get/multicast_get hide session keys unless include_keys=true.
integration_get redacts stored credentials unless include_secrets=true.
<redacted> is reserved: integration_set/multicast_update keep the stored value wherever it appears (so an edited _get result can be handed straight back), and integration_set/multicast_create refuse it when there is nothing to keep.
Plain HTTP/2 (h2c) is the default because ChirpStack's API port is plain by default. Plain h2c sends the API key as a cleartext bearer token on the wire; use it only on a trusted LAN, and set CHIRPSTACK_TLS=true (behind a TLS-terminating proxy that speaks gRPC) or a VPN elsewhere.
streamable-http has no authentication of its own and binds to 127.0.0.1. Do not expose it on a public interface.
The HTTP transport validates Host/Origin headers (DNS-rebinding protection), so a web page in the operator's browser cannot open an MCP session against the loopback listener.
Destructive tools are annotated (destructiveHint) so MCP clients can ask before running them.
Enabling the tenants toolset lets the agent mint API keys; api_key_create returns the new token once, in its result.

Development

uv sync
uv run pytest                     # unit tests
uv run ruff check . && uv run pyright
tests/integration/up.sh           # throwaway ChirpStack in Docker + API key
set -a; . .integration/env; set +a
uv run pytest -m integration
tests/integration/down.sh

Design notes live in docs/design.md.
