SceneView

The AI-first 3D & AR SDK for Jetpack Compose, SwiftUI and the web.

Declarative 3D and AR for app developers who want a model on screen, or in the room, without a game engine: Filament + ARCore on Android, RealityKit + ARKit on Apple, Filament.js + WebXR in the browser — with Flutter, React Native and Compose Multiplatform bridges on top. Open source, Apache 2.0.

AI-first means one thing here: an assistant that reads llms.txt or the MCP server writes SceneView code that works on the first try. When it doesn't, the API or the doc gets fixed.

---

Quick start

One minimal, working example per platform. The full reference for each is in llms.txt.

Android

// build.gradle.kts
implementation("io.github.sceneview:sceneview:4.40.0")

@Composable
fun ModelScreen() {
    SceneView(modifier = Modifier.fillMaxSize()) {          // orbit camera + default lighting
        rememberModelInstance(modelLoader, "models/helmet.glb")?.let { instance ->
            ModelNode(modelInstance = instance, scaleToUnits = 1.0f, autoAnimate = true)
        }
    }
}

models/helmet.glb lives in src/main/assets/. rememberModelInstance returns null until the model is loaded, then recomposes. Never call modelLoader.createModel* from a background coroutine: Filament calls must run on the main thread, and rememberModelInstance handles that.

AR (Android)

// build.gradle.kts
implementation("io.github.sceneview:arsceneview:4.40.0")   // includes the 3D module

@Composable
fun ARScreen() {
    var anchor by remember { mutableStateOf<Anchor?>(null) }

    ARSceneView(
        modifier = Modifier.fillMaxSize(),
        planeRenderer = true,
        onSessionUpdated = { _, frame ->
            if (anchor == null) {
                anchor = frame.getUpdatedPlanes()
                    .firstOrNull { it.type == Plane.Type.HORIZONTAL_UPWARD_FACING }
                    ?.let { frame.createAnchorOrNull(it.centerPose) }
            }
        }
    ) {
        val helmet = rememberModelInstance(modelLoader, "models/helmet.glb")
        anchor?.let { a ->
            AnchorNode(anchor = a) {
                helmet?.let { ModelNode(modelInstance = it, scaleToUnits = 0.5f) }
            }
        }
    }
}

Plane detected → anchor set → Compose recomposes → the model appears. AR state is just Kotlin state. For placement without a tap, grounded and gesture-ready, start from AutoPlacementScene (see llms.txt).

iOS / macOS / visionOS (SwiftUI)

Swift Package Manager: https://github.com/sceneview/sceneview.git, from 4.39.0.

import SwiftUI
import SceneViewSwift

struct ModelScreen: View {
    @State private var model: ModelNode?

    var body: some View {
        SceneView { root in
            if let model { root.addChild(model.entity) }
        }
        .contentID(model != nil)      // re-run the builder once the model has loaded
        .environment(.studio)
        .cameraControls(.orbit)
        .task { model = try? await ModelNode.load("helmet.usdz") }
    }
}

The content closure runs once unless its .contentID(_:) changes: without that line, a model that finishes loading after the scene appears is never added.

Web

<canvas id="viewer" style="width: 100%; height: 480px"></canvas>
<script src="https://cdn.jsdelivr.net/gh/sceneview/sceneview@v4.40.0/website-static/js/filament/filament.js"></script>
<script src="https://cdn.jsdelivr.net/gh/sceneview/sceneview@v4.40.0/website-static/js/sceneview.js"></script>
<script> SceneView.modelViewer("viewer", "model.glb") </script>

Compose Multiplatform (Android · iOS · desktop)

// commonMain dependencies
implementation("io.github.sceneview:sceneview-compose:4.40.0")

SceneViewer(model = ModelSource.Asset("models/helmet.glb"), modifier = Modifier.fillMaxSize())

A viewer by design — load, orbit, light, tap; no AR. Scope and the one-time iOS setup: sceneview-compose/.

Flutter

// pubspec.yaml → flutter_sceneview: ^4.39.0
final controller = SceneViewController();

SceneView(
  controller: controller,
  onViewCreated: () => controller.loadModel(
    const ModelNode(modelPath: 'models/helmet.glb'),
  ),
)

React Native

// npm install @sceneview-sdk/react-native
import { SceneView } from '@sceneview-sdk/react-native';

<SceneView
  style={{ flex: 1 }}
  modelNodes={[{ src: 'models/helmet.glb', position: [0, 0, -2] }]}
  cameraControlMode="orbit"
/>

Flutter and React Native bridge a subset of the native API — see flutter/ and react-native/ for what is covered.

Your AI assistant

claude mcp add sceneview -- npx -y sceneview-mcp   # Claude Code
codex  mcp add sceneview -- npx -y sceneview-mcp   # Codex

Then ask: "Add a 3D model viewer to my Compose screen." Every other client is in Use with AI.

---

Try it



The demo apps are built from samples/. Any demo opens straight from a link: https://sceneview.github.io/open?demo=<id> (for example …/open?demo=ar-rerun).

---

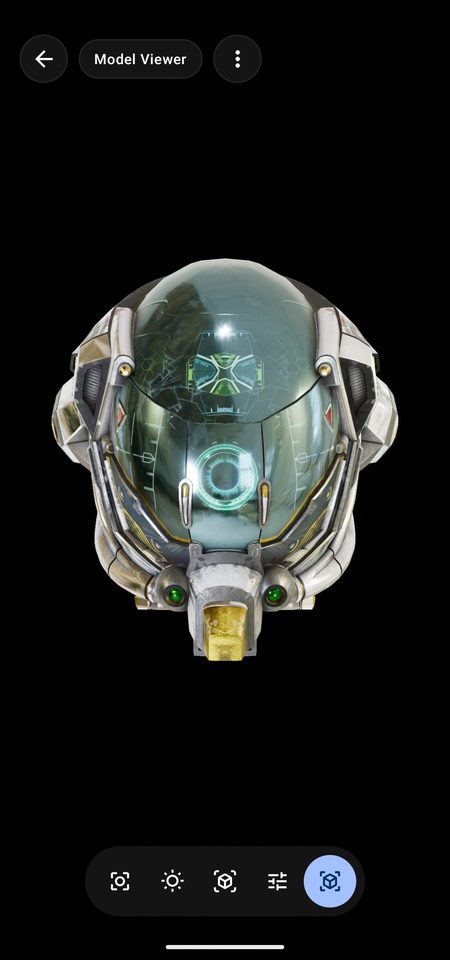

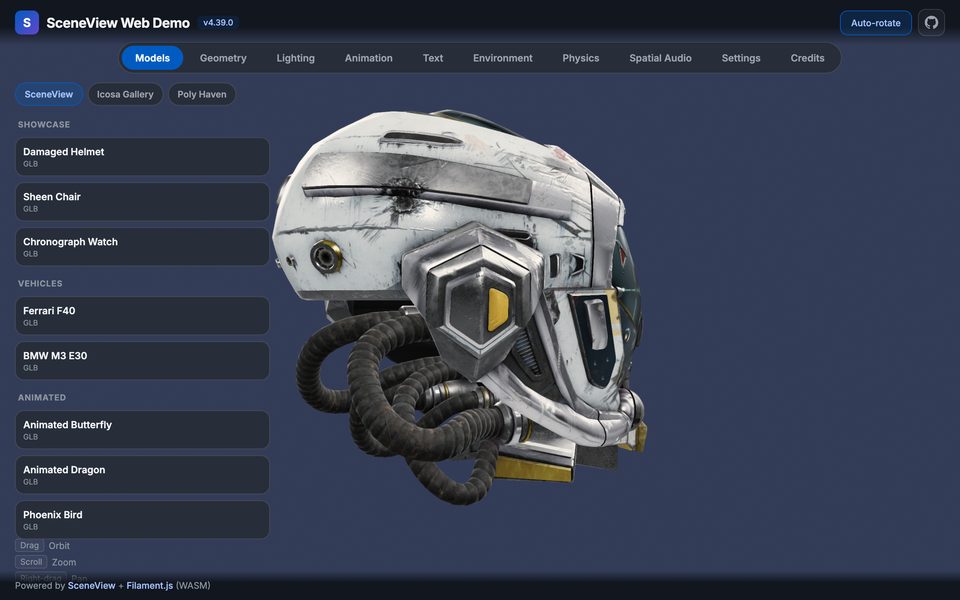

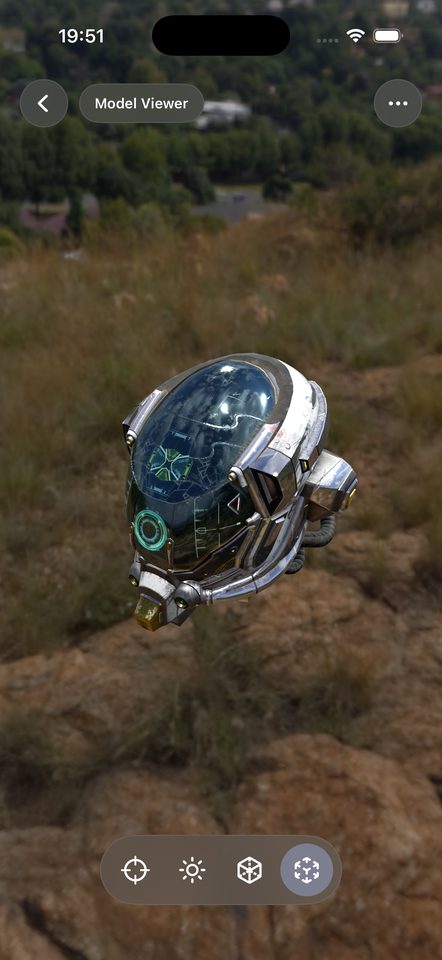

Runs on

Each row is a published package plus an app or page you can open today, backed by a real capture of it.

Shipped means released and publicly reachable; the second word is the API maturity. The other platforms in the table below join this section once a capture backs them.

---

Platforms

Install

---

Use with AI

Everything an assistant needs to write SceneView code ships with the SDK:

• llms.txt — the complete API reference in one file: composables, every node type, threading rules, recipes. Its Kotlin snippets are compiled in CI. Served at https://sceneview.github.io/llms.txt for tools without MCP support.
• Rules files — AGENTS.md (Codex, Cursor, GitHub Copilot, Gemini in Android Studio and others), CLAUDE.md (Claude Code), .github/copilot-instructions.md, and .cursorrules for older Cursor versions.
• The MCP server — free, no API key. The tools assistants reach for most: validate_code (checks a snippet against the real public API before you run it), get_node_reference (the exact node signature, not an invented one), list_samples / get_sample (38 samples to start from), and get_setup / get_ar_setup (project wiring).

MCP setup

claude mcp add sceneview -- npx -y sceneview-mcp   # Claude Code
codex  mcp add sceneview -- npx -y sceneview-mcp   # Codex
copilot mcp add sceneview -- npx -y sceneview-mcp  # GitHub Copilot CLI

// Cursor (.cursor/mcp.json), Cline, JetBrains AI Assistant
{ "mcpServers": { "sceneview": { "command": "npx", "args": ["-y", "sceneview-mcp"] } } }
// VS Code (.vscode/mcp.json) uses the "servers" key instead
{ "servers": { "sceneview": { "type": "stdio", "command": "npx", "args": ["-y", "sceneview-mcp"] } } }

Clients that only speak HTTP (Gemini in Android Studio, ChatGPT) use the hosted endpoint https://mcp.sceneview.dev/mcp, or run their own with npx sceneview-mcp --http. Per-client snippets: sceneview.github.io/#ai-setup. Listed on the MCP Registry.

ChatGPT / Codex plugin

This repository is also an OpenAI plugin: .codex-plugin/plugin.json points at the three skills under agents/ (sceneview, sceneview-ios, sceneview-web). From a checkout:

codex plugin marketplace add "$PWD"    # absolute path — a relative one does not resolve
codex plugin add sceneview@sceneview-local

Codex also discovers the skills from .agents/skills/ on its own. Over HTTP the MCP server carries an inline view_3d_model widget that renders a public GLB/glTF URL in the conversation. Listing copy and test prompts: agents/OPENAI-PLUGIN.md.

Claude Code plugin

/plugin marketplace add sceneview/claude-marketplace, then /plugin install sceneview@sceneview, installs the MCP server together with the contributor commands used to work on this repository — see sceneview/claude-marketplace.

Vertical MCP servers (Rerun AR debugging and others) are listed in the MCP README.

---

Android in depth

3D scene

SceneView is a composable that renders a Filament viewport. Nodes are composables inside it.

val engine = rememberEngine()
val modelLoader = rememberModelLoader(engine)
val environmentLoader = rememberEnvironmentLoader(engine)

SceneView(
    modifier = Modifier.fillMaxSize(),
    engine = engine,
    modelLoader = modelLoader,
    environment = rememberEnvironment(environmentLoader) {
        environmentLoader.createHDREnvironment("envs/studio.hdr")
            ?: createEnvironment(environmentLoader)
    },
    cameraManipulator = rememberCameraManipulator()
) {
    // Model — async loaded, appears when ready
    rememberModelInstance(modelLoader, "models/helmet.glb")?.let {
        ModelNode(modelInstance = it, scaleToUnits = 1.0f, autoAnimate = true)
    }

    // Geometry — procedural shapes
    CubeNode(size = Size(0.2f))
    SphereNode(radius = 0.1f, position = Position(x = 0.5f))

    // Nesting — same as Column { Row { } }
    Node(position = Position(y = 1.0f)) {
        LightNode(apply = { type(LightManager.Type.POINT); intensity(50_000f) })
        CubeNode(size = Size(0.05f))
    }
}

Node composables — 27 in 3D, 15 more in AR

AR scene

ARSceneView is SceneView with ARCore: the camera follows real-world tracking. See the AR quick start above.

Capabilities

---

Model formats

There is no per-format API on Android: rememberModelInstance(modelLoader, path) accepts all of them. The format is decided by the file's bytes, not its extension, so a file shared into your app as application/octet-stream with no name still opens. The converters are dependency-free Kotlin in sceneview-core. Tracked next: one ModelFormat entry point and every format on the web. Details: Model formats.

---

Apple (iOS / macOS / visionOS)

Native Swift Package built on RealityKit, with a node set mirroring the Android API. Content you can build synchronously uses the @NodeBuilder form:

SceneView {
    GeometryNode.cube(size: 0.1, color: .blue)
        .position(.init(x: 0.5, y: 0, z: 0))
    LightNode.directional(intensity: 1000)
}
.environment(.studio)
.cameraControls(.orbit)

AR on iOS — tap a detected plane to place content:

ARSceneView(
    planeDetection: .horizontal,
    onTapOnPlane: { position, arView in
        let anchor = AnchorNode.world(position: position)
        anchor.add(GeometryNode.cube(size: 0.1, color: .blue).entity)
        arView.scene.addAnchor(anchor.entity)
    }
)

Nodes — ModelNode · GeometryNode (cube/sphere/cylinder/cone/torus/capsule/plane) · LightNode · ImageNode · VideoNode · TextNode · ViewNode · BillboardNode · MeshNode · LineNode · PathNode · ShapeNode · PhysicsNode · ReflectionProbeNode · DynamicSkyNode · FogNode · CameraNode · AnchorNode · AugmentedImageNode · SceneReconstructionNode (visionOS scene mesh). Plus an iOS RerunBridge with the same wire format as Android.

Full guide: SceneViewSwift/README.md.

---

SceneView Web

Two <script> tags and one call (see Web above). The wrapper is ~24 KB gzipped; the engine it drives is Filament — the same renderer as Android SceneView — compiled to WebAssembly (~2.3 MB gzipped).

JavaScript API (script tag):

• SceneView.modelViewer(canvasOrId, url, options?) — all-in-one viewer with orbit + auto-rotate
• SceneView.create(canvasOrId, options?) — empty viewer, load a model later
• viewer.loadModel(url) — load or replace a glTF/GLB model
• viewer.setAutoRotate(enabled) — toggle rotation
• viewer.dispose() — release resources

Kotlin/JS (sceneview-web, npm only) — the power-user API: OrbitCameraController, the geometry DSL, reactive node updates, and WebXR through ARSceneView (immersive-ar, hit-test, anchors, light estimation), VRSceneView (immersive-vr, controllers) and the low-level WebXRSession. The module builds a webpack bundle, so it has no Maven coordinate:

npm install sceneview-web

The package expects a Filament global and does not include the SceneView.modelViewer script helpers. A Kotlin Multiplatform project that only needs the shared core (collision, math, geometry, animation, physics — no renderer) uses implementation("io.github.sceneview:sceneview-core-js:4.40.0").

Landing page · Playground · npm

---

The Compose-native successor to Sceneform

Google archived Sceneform in 2021 and ships no first-party declarative AR renderer. SceneView descends from the maintained Sceneform community fork: ARCore for perception, Filament for rendering, Jetpack Compose for the API, and glTF (.glb / .gltf) instead of the deprecated .sfb format.

Coming from Sceneform? The migration guide maps it concept by concept (ArFragment → ARSceneView { }, ModelRenderable → rememberModelInstance, and so on).

---

AR debugging

• Record & Replay — capture an ARCore session once with rememberARRecorder(), replay it 1:1 at your desk with ARSceneView(playbackDataset = file). See docs/docs/ar-recording.md and the Record & Playback demo.
• Hosted Rerun viewer — tap Save & Share in the AR Rerun demo, host the .rrd file on any public URL, and open https://sceneview.github.io/rerun/?url=<encoded-url> to scrub the session frame by frame in a browser, with no local install. Architecture and the Kotlin API (RerunBridge.requestSaveAndShare) are in the AR Debug — Rerun.io section of llms.txt.

---

Architecture

Each platform uses its native renderer. Shared logic lives in Kotlin Multiplatform.

sceneview-core (Kotlin Multiplatform)
├── math, collision, geometry, physics, animation, model-format converters
│
├── sceneview (Android)          → Filament + Jetpack Compose
├── arsceneview (Android)        → ARCore
├── sceneview-compose (KMP)      → one SceneViewer for Android, iOS and desktop
├── SceneViewSwift (Apple)       → RealityKit + SwiftUI
├── sceneview-web (Web)          → Filament.js + WebXR
└── flutter/ · react-native/     → bridges to the native views

Samples

Built with SceneView

• AR Model Viewer — open a 3D file from any app or link (GLB, glTF, STL, OBJ, PLY, 3MF) and see it in your room at real size.
• Will It Fit — enter a piece of furniture's dimensions and see whether it fits before you buy.

---

Links

• Website · Playground · Documentation
• Discord · Contributing · Changelog · Migration v2 → v3

Support

SceneView is free and open source. Donations keep it maintained across every platform above.

See SPONSORS.md for how sponsorship works here.
