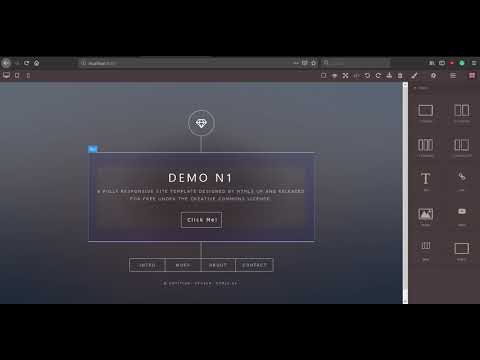

OSCAR is a tool to create beautiful graphical user interaces (GUIs) to send OSC messages and control interactive installations (Modul8, MapMapper, Resolume arena, TouchDesigner, Ableton Live, Processing, Pure Data, Unity, Unreal Engine, etc). Let's create beautiful, responsive and touchable interfaces.

Build a layout in the browser, drop in buttons and sliders, point each one at an IP, port and OSC address, then publish it and open it from a phone or tablet on the same network to drive your software, gear and lights.

Download

Get the installer for your machine from the latest release:

These builds aren't code signed, so your system warns you the first time. On Windows, click More info then Run anyway. On macOS, right-click the app and choose Open.

The first time OSCAR is opened in a browser, the canvas shows the Showcase template, where every widget works, so there is something to try straight away. After that the canvas is whatever you left on it, including empty. It is a template like any other: open File → Open project or template… to get it back, or to start from another.

Keep in touch

Sign up to the OSCAR mailing list to hear about new releases, features and tutorials.

OSCAR is a free and open source project, and it is better for every bit of feedback it gets. If you build something with it, we would love to know.

Running from source

Requires Node.js 18 or newer.

git clone https://github.com/trafalmejo/OSCAR
cd OSCAR
npm install     # also installs the browser libraries under public/
npm start       # builds the bundle and starts the server

OSCAR opens your browser at http://localhost:8080 and also prints a LAN address such as http://192.168.1.20:8080. Open that second address on a phone or tablet on the same Wi-Fi to use the interface from there.

Make sure your firewall allows communication between devices on the network.

Useful commands

Running on explicit ports

To run a second copy of OSCAR on one machine -- while developing next to a running show, say -- every port has to move, including the two source ports OSC is sent from. serve:at takes the HTTP port and derives the rest from it, so one number keeps a copy out of everyone else's way:

npm run serve:at -- 18100                 # http 18100, socket 18101, OSC in 18102, sources 18103/18104
npm run serve:at -- 18100 18101 18102     # the same, with socket and OSC-in ports given explicitly

It works the same in PowerShell, cmd and a Unix shell, and does not open a browser. A port given on the command line always wins, even over an OSCAR_HTTP_PORT left in your shell profile (you are told when that happens). A port you did not give is derived from the HTTP port unless the matching OSCAR_*_PORT variable is already set, in which case the variable wins. Two ports landing on the same number, or a value that is not a port, stop the start with both named. To set ports by hand instead, use the variables under Configuration:

OSCAR_HTTP_PORT=8090 OSCAR_SOCKET_PORT=8091 OSCAR_LAN_PORT=5003 OSCAR_LOCAL_PORT=5004 npm run serve

A variable set to something that is not a port stops the server with a message naming it, rather than falling back to the default and colliding with whatever you were trying to avoid.

Building a desktop app

OSCAR ships as an Electron app. npm run electron runs it from source, and the dist scripts produce installers under release-builds/:

Each platform's installer has to be built on that platform. All three are built for both Intel (x64) and ARM (arm64); on Linux the ARM build is what runs on a Raspberry Pi with a 64-bit OS. Electron no longer ships a 32-bit Windows build. Icons are generated from build/icon.png.

Cutting a release

Releases are built by GitHub Actions. Pushing a v* tag builds OSCAR on Windows, macOS and Linux in parallel and attaches all the installers to a draft GitHub release, which you then write notes for and publish:

npm version 2.1.0        # bumps package.json and creates the tag
git push --follow-tags   # builds all three platforms, draft release appears

To re-cut the current version in package.json, tag it directly:

git tag v2.0.0 && git push origin v2.0.0

Running the workflow by hand from the Actions tab builds the installers and leaves them as downloadable run artifacts without creating a release — useful for checking a build before tagging.

Builds are not code signed, so Windows SmartScreen and macOS Gatekeeper will warn on first run. On macOS, right-click the app and choose Open.

When run as a desktop app, projects are stored in the per-user data folder (%APPDATA%/OSCAR/projects on Windows, ~/Library/Application Support/OSCAR/projects on macOS) rather than next to the executable.

Configuration

All optional, set as environment variables:

Update checks

Once a day at most, OSCAR asks GitHub whether a newer version has been released, and shows a dismissible notice in the editor if so. Nothing is downloaded or installed automatically, and you can skip a version or turn the check off entirely with OSCAR_NO_UPDATE_CHECK=1.

This is the only request OSCAR makes to the internet. It sends nothing about you or your projects, times out quickly, and failing silently is the expected case on a venue network with no internet access.

Widgets

Drag these in from the OSC category, then set each one's IP, port and message in the settings panel (the gear icon).

On the XY pad, Y increases upward, and either axis can be inverted. Dragging sends at most one message per frame, and always sends the exact value where you let go.

A slider can be Vertical from its Orientation setting. A size you have given a slider with the resize handles is kept when it turns: a wide, short box makes a squashed vertical control, so switch the orientation first and resize afterwards, or clear the width and height in the Style Manager.

Following the rig (OSC in)

OSCAR also receives. It listens for OSC on UDP port 8880: point your software's OSC output at OSCAR's IP and that port. The port is fixed by design, as QLab's 53000 is, so a rig aimed at an OSCAR always finds it; the editor shows it in the top bar and as Port in under a widget's Data in, and only OSCAR_OSC_IN_PORT at startup moves it, for the rare machine where 8880 is taken. OSC runs both ways, so a widget's OSC section opens with a checkbox per direction: Data in and Data out. Tick Data in on a widget and it follows whatever arrives at its own Message address: a slider's thumb moves, an XY pad's handle jumps (/pad 30 70, or /pad/x and /pad/y in two-message mode), and a toggle button lights up and adopts the state, so the next press sends the opposite edge. A momentary button only lights up, because its state is your finger's.

On a published interface OSCAR reads the message once and tells every device the result, the same way it tells them about a finger on a button. So every tablet shows the same thing, one that opens the interface later shows where the rig left it, and it works with no device looking at all. The media browser is the one exception: each page reads the message for itself.

You do not have to type the address. Click Learn on the title of the widget's OSC section, then send a message from your software (move the thing you want the widget to follow). The widget takes the address of the first message that arrives and turns Data in on. Learn gives up after fifteen seconds, and a second click calls it off.

Data in is off by default, so nothing starts moving on its own. Untick Data out and a widget keeps following the rig while sending nothing. Master comms, at the top of every widget, is over all of it: a widget with it off is deaf as well as silent on every protocol, so you can lay an interface out while the rig is live. A hand on a control outranks the network: while you are dragging a slider or a pad, or holding a button, what arrives is ignored until you let go. A widget never sends in answer to what it hears, so software that echoes its own state cannot start a loop with OSCAR. A value that cannot be read as a number is ignored, never treated as 0. A button that sends no argument has nothing to follow: a bare address says nothing about its state.

Incoming addresses may be OSC 1.0 patterns -- /layer*/clip, /ch[1-3], /{play,stop} -- and reach every widget they match; a widget's own Message is always taken literally, and always reached by its own exact text, even one like /layer[1]/opacity. Software that answers to the port a message came from (OSCAR's source ports, 5001 and 5002) is heard as well, so replies need no configuration. If the OSC-in port is busy or cannot be opened when OSCAR starts, it says so and carries on: sending is unaffected.

Driving lights directly (DMX over Art-Net, sACN and USB)

A button, slider or XY pad can drive lighting fixtures directly, with no lighting software in between. A widget's settings are grouped in collapsible sections, one per protocol. A section shows its Data in and Data out checkboxes and nothing more; the rest of its settings appear when a direction is switched on, and each setting belongs to its direction, so an Out port is not on screen when nothing goes out. DMX only runs one way, from the desk to the fixture, so its section has the one direction: open DMX and tick Data out. Leave OSC's Data out ticked to keep driving software at the same time, or untick it to drive the fixture alone. Each section's title carries a small light per direction, IN and OUT, green while that direction is live, so a collapsed section still says what it is doing. The DMX section holds:

A slider sends its level (0-255 across its own Min-Max range, so a slider labelled 20-2000 still means full at the top; Invert mirrors it). A button sends full while on and out while off, whatever its Value ON and OFF say for OSC. An XY pad puts X on the first channel and Y on the next: pan and tilt on a moving head. Values fill the block in order and the last one repeats, so a slider over three channels dims an RGB fixture as a whole. A block that would run past channel 512, or is too narrow for the widget's values, is refused in the panel and never sent. OSC's Data out is on and DMX's is off on every widget until you change them, so a project made before this existed behaves exactly as it did, and one saved while this was a single Output list opens with the matching boxes ticked.

DMX is a stream, not a message: fixtures expect the frame to be repeated, and an sACN receiver drops a source that goes quiet for 2.5 seconds. So OSCAR keeps every universe it drives on the air until the widget driving it is deleted or switched back to OSC, or OSCAR quits, and then hands the channels back by sending them at zero (on sACN, with the stream-terminated packets the standard asks for). Several widgets on one universe are merged highest-takes-precedence where their blocks overlap, as a lighting desk would. A tablet disconnecting or a phone locking its screen releases nothing: whatever it last set stays up until something changes it. Quitting OSCAR releases everything unless OSCAR_DMX_HOLD_ON_EXIT=1, for a permanent installation that should hold its look through a restart. As with OSC, a value that cannot be read is dropped rather than sent as 0: a dropped value must never black a rig out.

A USB interface needs no network at all. An Enttec DMX USB Pro, a DMXKing ultraDMX or one of the many interfaces that speak the Pro protocol makes the DMX signal itself, so it is as dependable as a network node: OSCAR hands it the frame on every change and on the keepalive, and it repeats it on its own. An Enttec Open DMX USB or its clones is a bare serial chip, and this computer has to make the signal, forty frames a second, for as long as the universe is driven; that works, and a busy computer can show it as a flicker on the rig. Both use the serial driver OSCAR ships for boards. The port is opened when the first frame goes to it and held; an interface that is not there yet is reported once and looked for again every two seconds, so plugging it in later is enough.

Packets leave from any free port (OSCAR_DMX_PORT), so OSCAR can run next to lighting software that itself receives Art-Net on 6454. If the port you pin cannot be opened, OSCAR says so at startup and everything else still works.

On a computer with more than one network connection -- Wi-Fi for the internet and a cable to the lighting switch, say, or a virtual machine's adapter -- a blank node is not enough: the operating system puts a broadcast on one connection only, usually the one with internet on it, and the node on the other never hears it. Name the node's address, or the lighting network's own broadcast address (2.255.255.255 or 10.255.255.255 for the ranges Art-Net nodes ship on), and the packets go the right way.

Running a show

The editor lives at /. The preview lives at /preview — the same layout with every editing tool stripped out, as a phone or tablet shows it.

Choose File → Push to preview to send the current layout to it. Every device showing /preview picks the new layout up straight away; there is no need to walk over and reload them.

Sending MIDI

Every widget that can drive DMX can send MIDI: open the MIDI section of its settings and tick Data out. It is a third protocol beside OSC and DMX, and any of the three can be on at once.

What a widget sends is its value scaled to MIDI's 0 to 127, the way DMX scales it to 0 to 255: a slider at the top of its range sends 127 whatever its Min and Max. A button sends note on at full velocity and note off, or 127 and 0 as a controller. A widget with several values uses the numbers that follow: a pad set to controller 20 sends X on 20 and Y on 21, a colour sends red, green and blue on three in a row. Program change sends a dropdown's value as it is when that is a whole number from 0 to 127, so options valued 0, 1, 2 pick programs 0, 1, 2. Pitch bend uses all 14 bits.

The ports belong to the computer running OSCAR. A tablet or a phone showing a published interface sends MIDI through it, exactly as it sends OSC and DMX.

To reach software on the same computer (Ableton Live, Resolume, a DAW) you need a virtual MIDI port. macOS has one built in: enable the IAC Driver in Audio MIDI Setup. On Windows install loopMIDI and create a port; OSCAR then lists it. On Linux, snd-virmidi or a JACK/ALSA bridge does the same.

OSCAR opens a port the first time a widget sends to it and keeps it open. If the instrument is unplugged, it is looked for again every two seconds and picked up when it returns. Only notes, controllers, programs and bends are sent; system exclusive and clock are refused.

MIDI in: a widget that follows a controller

Tick Data in in the MIDI section and a knob, fader or pad on a MIDI controller moves the widget, on every page that shows it, the editor's canvas included. It is OSC's Data in over another wire, and keeps the same rule: what comes in is never sent out. The widget follows and says nothing, not in OSC, not in DMX, not in MIDI, so nothing can loop. A hand on the same widget sends as it always did.

Click Learn on the title of the MIDI section and touch the control: the widget takes its port, channel, type and number. While Learn is waiting, what you play moves no other widget.

• A fader, a number box: the level, across the widget's own Min to Max.
• A button: held while a note is held; with a controller, on from halfway up. A button set to Toggle changes over on each press and ignores the release.
• A dropdown: a program change picks the option with that value, or failing that the option at that position. Any other message picks along the list.
• A pad: the Number is X and the next one up is Y. A colour: red, green and blue on three in a row. What is not touched stays where it was.

OSCAR only opens the input ports that the widgets on an open page listen on, or every port if one of them asks for All MIDI inputs, and lets go of them when the last such page closes. On Windows a MIDI input belongs to whichever program opened it first, so a controller OSCAR is listening to is not available to other software, and the other way round; the console says when a port is in use.

The bridge: sending on what comes in

By rule, what comes in is only shown: an OSC message or a MIDI knob moves the widget on every screen, and nothing is sent on, which is what makes a loop with software that echoes its own state impossible. Each protocol's Send when setting relaxes that per widget: Changed by the user is the rule above and the default; Changed by the user or by data in also sends what Data in put the widget in. That makes OSCAR a bridge -- a MIDI fader box drives Resolume through an interface, a sensor's OSC drives a fixture -- and any of MIDI in or OSC in can feed any of OSC, MIDI or DMX out.

The bridged send happens once, from whoever serves the interface: the server for published interfaces, however many devices show them and whether any browser is open at all; a downloaded file for itself, which is why such a file should be open in one copy only. The editor's canvas and the preview only follow, so a project open in the editor while it is published never drives the rig twice. Two things stand between a bridge and a loop: the Loop guard (default on) passes on only a change that changed the value, so an echo moves nothing and nothing is re-sent -- untick it for triggers where a repeat is the event, and never point such a widget back at its own source -- and under the guard, no widget bridges more than 200 sends a second. The editor asks for confirmation when Data in and a bridged Send when first meet on one widget.

MIDI in lib/features.js hides the section if it has to be taken out of a release. About (Report a problem) says how many ports OSCAR can see, which is the first thing to check when nothing arrives or nothing is heard.

Locking an installation

By default anyone on the network can open the editor at / and change things. For an installation or a show, press the padlock in the toolbar.

While OSCAR is locked:

• Other devices can still open /preview and use the controls
• Visiting / from another device sends them to /preview instead
• Saving, loading and deleting projects are refused
• Only the computer running OSCAR can edit, or unlock it again

Physical access to that computer is what grants editing, so there is no password to leak over a venue's network or forget before doors open. The setting is remembered, so a machine that reboots overnight comes back locked. OSCAR_LOCKED=1 starts it locked.

This stops editing, not sending: the OSC bridge stays open, because that is how the tablets work at all. Anyone who can reach OSCAR can still send OSC to your rig. If that matters, the answer is a separate network for the control devices, not a setting in OSCAR.

Saving your work

There is no Save to press. A project lives in OSCAR, on the computer OSCAR runs on, and every change is saved a moment after you make it. The top bar shows the project's title, and beside it how it stands: Saving, Saved, or Not saved when OSCAR cannot be reached. What has not been confirmed stays in your browser and is sent as soon as OSCAR answers, even after the tab was closed in between.

• The title is in the top bar: click it to rename. The same title names the published interface, the phone's tab and, with OSCAR Pro, the portal. A published interface's address does not change when you rename.
• File → New project starts an empty canvas called "Untitled". It joins your projects at its first change, so one you only looked at leaves nothing behind. A template opens the same way, named after the template.
• File → Open project or template… lists your projects and the templates.
• File → Make a copy makes a second project like this one.
• File → Export a copy… writes an .oscar file wherever you choose: a backup, or something to send. File → Open a file…, or double-clicking an .oscar file, brings one in as a project. If that project is already in OSCAR, you are asked whether to replace it or keep both.
• File → Revert to… is the way back, since there is no closing without saving: to how the project was when this window opened it, or to the version that is published.
• The same project open in two windows: the one that saves second is told the project changed somewhere else, and chooses which version to keep. Changes are not merged.

Projects are plain JSON files in the projects/ folder next to OSCAR, so they can still be copied and backed up by hand. Because they are on the computer OSCAR runs on, any browser that may edit sees the same projects.

Note for OSCAR 1.x users: the old online accounts at account.createwithoscar.com no longer exist. OSCAR now stores everything on your own machine, and no longer asks you to log in.

Templates and widget styles

File → Open project or template… also lists the templates OSCAR ships with: whole interfaces to start from, every control on them working. Some are built for one piece of software and carry a card listing its addresses: the Resolume Video Desk (a clip grid, layer strips, crossfader, master, tempo; Resolume's own addresses, port 7000) and the QLab Stage Manager's Desk (GO, STOP, PANIC, playhead and a cue sheet; QLab's own addresses, port 53000, every key a bare address sent once) and the TouchDesigner Parameter Rack (parameters out, an audio level and a sensor back in, with the two-CHOP recipe on its card; an OSC In CHOP listens on port 10000; next to it in public/templates/ is touchdesigner-parameter-rack.py, a script that builds the whole demo network inside TouchDesigner in one go, so the picture moves and the two meters read something; it wears the Sci-fi HUD style rather than a look of its own). The DMX Console, 12 Channels is a lighting desk whose controls send DMX. Big Thumb puts one control on each screen of a phone, the size of a hand. The rest are objects to play with: a boombox, a walkie-talkie, an arcade cabinet, a cassette player, a CD player, a click-wheel player, a turntable and a TV remote. A template that is built for one program has been written from that program's documentation; if you have it, try it and tell us what moved.

The widget style picker in the top bar dresses every control at once: Default, Amber Minimal, Cyberpunk, Supabase, Tangerine, Neon (every control a lit tube, with the flicker of one striking) and Sci-fi HUD (corner brackets, a segmented meter, a crosshair on the pad), each light or dark. A template that brings its own look is listed as Page's own; pick a style and it is redrawn in that style's colours.

How it works

Browser (grapesjs editor + OSCAR widgets)
   |  socket.io  :8081
   v
OSCAR server (Node/Express)
   |  UDP
   v
Your lighting / video / sound software

Widgets carry their own OSC settings (IP, port, address, value). When you press a button or move a slider the browser sends that over socket.io to the OSCAR server, which emits the actual OSC packet over UDP.

OSCAR for AI assistants (MCP)

A running OSCAR is an MCP server, so an assistant such as Claude can read it and build for it: your projects, what is published and what each widget is set to, the MIDI ports, the recent network activity ("why isn't my light responding?"), every widget's settings and how an interface is written -- and it can draft a whole interface as HTML, judged by the widgets' own validators and listed under File → Open project or template… with a Draft badge for you to review. No tool touches the wire: nothing is sent, published or driven, and no project is changed; a draft does nothing until you open it and decide.

Connect an assistant once, with OSCAR running and the MCP pill in its top bar green:

claude mcp add oscar -- npx -y createwithoscar

That is Claude Code. Claude Desktop takes the one-click bundle OSCAR.mcpb from the website; any other MCP app takes a server with the command npx and the arguments -y createwithoscar. createwithoscar is the helper the assistant starts: a small program with no dependencies that finds this OSCAR through ~/.oscar/mcp.json (written on every start) and passes each request on. When OSCAR is not running the assistant still sees the tools, and is told to ask you to start it.

The tools: status, list_projects, read_project, list_published, read_published, installation_map, midi_ports, recent_activity, describe_widgets, validate_draft and create_draft, the only one that writes anything. installation_map is the whole installation in one answer: everything the published interfaces talk to and listen for (each OSC destination, MIDI port and DMX output, with the controls behind it), what this computer has plugged in, and what does not add up. It is worked out from settings and sends nothing onto the network.

OSCAR's own endpoint is http://127.0.0.1:<port>/mcp, with the token from that same file as a bearer token. It answers this machine only, the token is new on every start, the switch behind the MCP pill closes it, and MCP: false in lib/features.js removes the whole thing.

Working on the helper: it lives in createwithoscar/ and is published to npm from there (npm publish, by its owner). npm run build:mcp rewrites the copy of the tools it carries and the bundle's manifest after lib/mcp/tools.js changes (a test fails until it is run), and npm run pack:mcpb packs release-builds/OSCAR.mcpb. From a source checkout, node scripts/oscar-mcp.js is the same program.
