EasyEDA Pro MCP

Connect Claude, Codex, VS Code, and other Model Context Protocol (MCP) clients to the live EasyEDA Pro project already open on your machine.

Independent open-source MCP bridge for live schematic and PCB workflows in EasyEDA Pro.

Quick Start · AI Client Setup · Tools · Troubleshooting · Releases

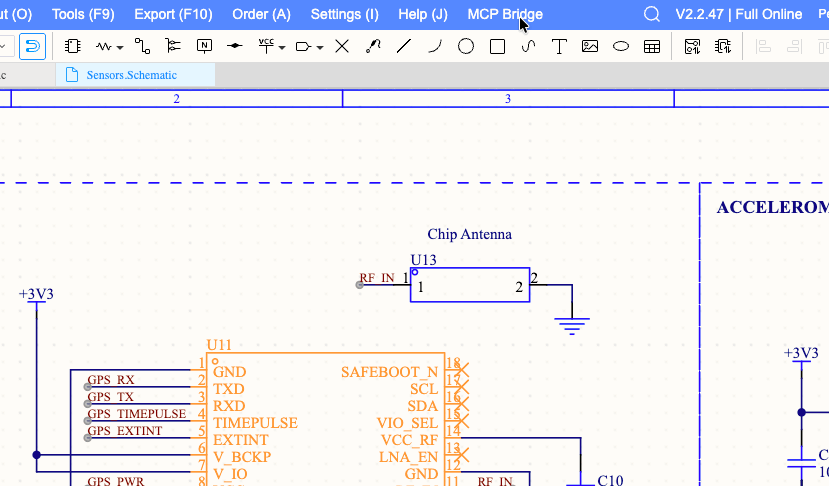

Demo showing EasyEDA Pro with the MCP Bridge workflow in action

What It Does

EasyEDA Pro MCP lets an AI assistant inspect the live EasyEDA Pro schematic or PCB you already have open. It gives MCP clients structured project context instead of making them guess from screenshots, copied text, or manual exports.

It runs locally:

MCP client -> Node.js MCP server -> local WebSocket bridge -> EasyEDA Pro extension

Works with Claude Desktop, Claude Code, Codex, VS Code, and other MCP-compatible clients.

Quick Start

npm install
npm run setup:local

Then:

configure your MCP client to run node /absolute/path/to/easyeda_mcp/dist/index.js
open EasyEDA Pro
load the packaged extension from build/dist
enable external interaction permission
open a schematic or PCB
ask your MCP client to run easyeda_doctor

Healthy output should show the extension connected, protocol compatible, and an active document available.

Full setup guide: Quick Start

What You Can Ask

Run easyeda_doctor and summarize whether the EasyEDA Pro bridge is healthy.
Run easyeda_get_context and tell me which document is open in EasyEDA Pro.
Run easyeda_schematic_snapshot and summarize components, nets, warnings, and confidence.
Run easyeda_trace_component for USB1 and summarize its connected nets.

Core capabilities:

live project and document context
schematic inspection for components, pins, nets, wires, and labels
component and net tracing
targeted connection assertions
editor navigation and export helpers
confirmation-gated editor-changing actions

Documentation

Quick Start: shortest path to a working setup
Getting Started: first-time setup with more context
AI Client Setup: Claude Desktop, Codex CLI, Claude Code CLI, VS Code, and generic MCP clients
EasyEDA Pro Extension Setup: install and reconnect the editor extension
Tools Reference: available MCP tools
Troubleshooting: fixes by symptom

Releases

Download packaged extension builds from GitHub Releases. Local builds also create build/dist/easyeda_mcp_bridge.eext.

Development

npm run setup:local
npm test
npm run typecheck
npm run docs:build

npm run setup:local builds the MCP server, builds the EasyEDA Pro extension bundle, and packages the .eext artifact.

Scope, Safety, and Status

This project works against a live EasyEDA Pro session. EasyEDA Pro must be open, the local extension must be installed, and the MCP server must be running.

Not included yet:

offline .epro parsing
commercial/order operations
unrestricted editor automation

The bridge listens on 127.0.0.1 by default. Do not expose the bridge port to untrusted networks. See SECURITY.md for reporting and runtime boundaries.

This is an independent open-source project. It is not affiliated with, endorsed by, or sponsored by EasyEDA, JLCPCB, or Shenzhen Jia Chuang Ban Technology Co., Ltd.
