NoaCG Studio

NoaCG Studio makes live broadcast graphics for shows and streams: lower thirds, scoreboards, tickers, title cards and more. Make them from a template, from your own SVG, or with your AI coding agent. Then play them from a browser source, run them through NoaCG Playout and NoaCG Bridge to CasparCG, or export them as HTML templates.

It is free and open source, and it runs in your browser. You need no account to make and export graphics. NoaCG is in beta.

noacg.studio (the app) · Docs · Downloads (NoaCG Bridge and the NoaCG CLI)

1. Make a graphic

From a template. Pick a design from the library, one graphic or a whole kit, and set its text, colours, logo and motion.
From your own SVG. Draw it in Illustrator or any tool that saves SVG, name the layers and keep text as text. Text layers become fields the operator edits. No AI is involved. PNG, JPEG, .html and .zip files import too. Prepare your file.
With your AI coding agent. Ask Claude Code or Codex for a graphic "for NoaCG". The agent builds it, and the NoaCG CLI checks it in a live playout test and saves it to your library. Saving needs a free account. Set up your agent.

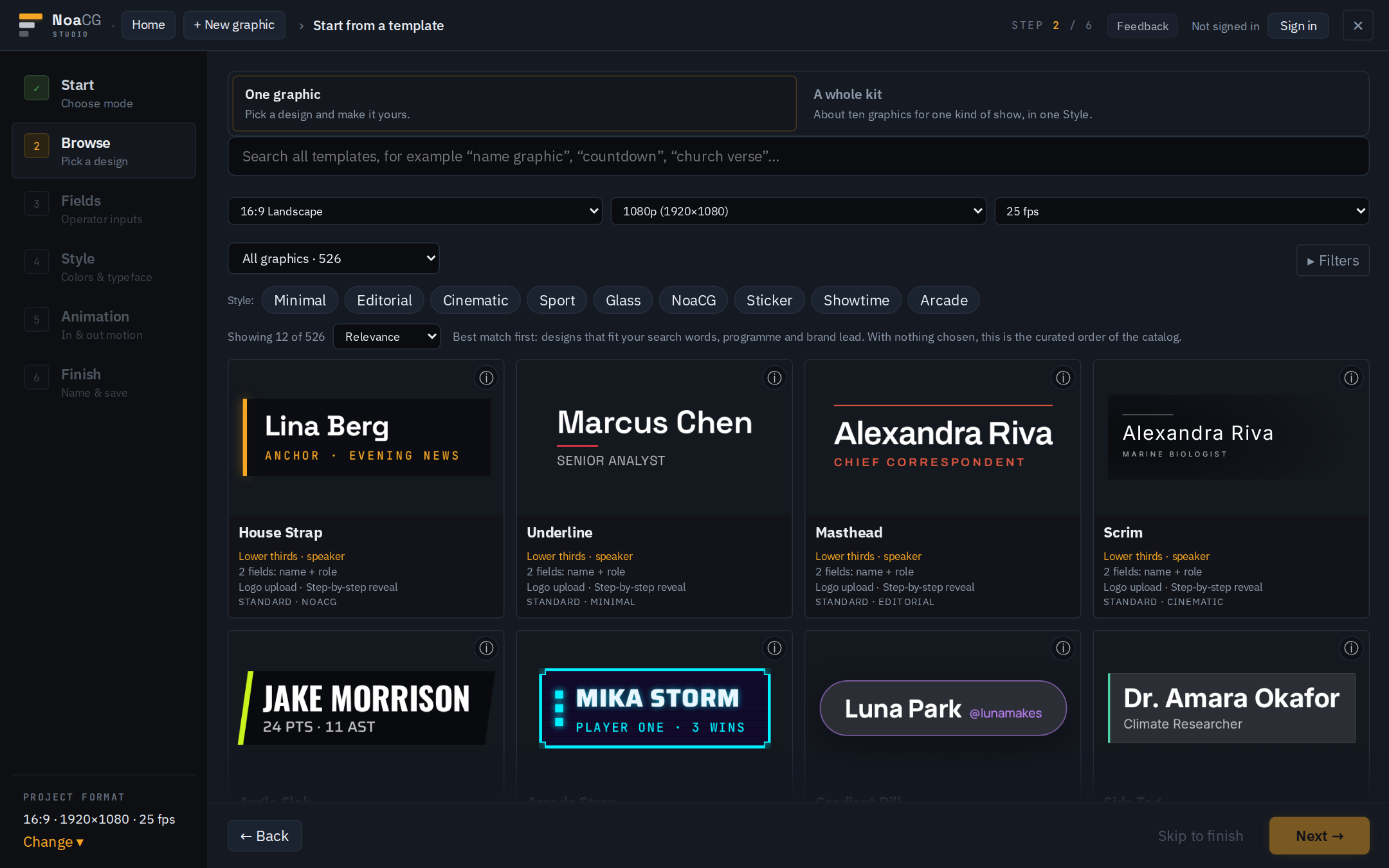

The template library: live previews of lower thirds with search and style filters

2. Play it or export it

NoaCG Playout is the operator page: a cue rundown, preview and program monitors, and Take, Update and Out on the keyboard. You can change names and scores while a graphic is on air.

CasparCG with NoaCG Bridge. NoaCG Bridge is a small Windows program on the playout machine. It connects NoaCG Playout to your CasparCG server and cues the server's clips from the same rundown. This is the main production setup.
OBS and browser sources. Load a production's output URL as a browser source and the graphics play straight from NoaCG. Publishing an output URL needs a free account.
Export. Download graphics as HTML templates for OGraf, CasparCG, SPX Graphics, H2R Graphics, LiveOS, OBS and vMix. They carry their own fonts and images and keep working without NoaCG. The vMix, SPX Graphics and LiveOS packages are not yet tested on those systems.

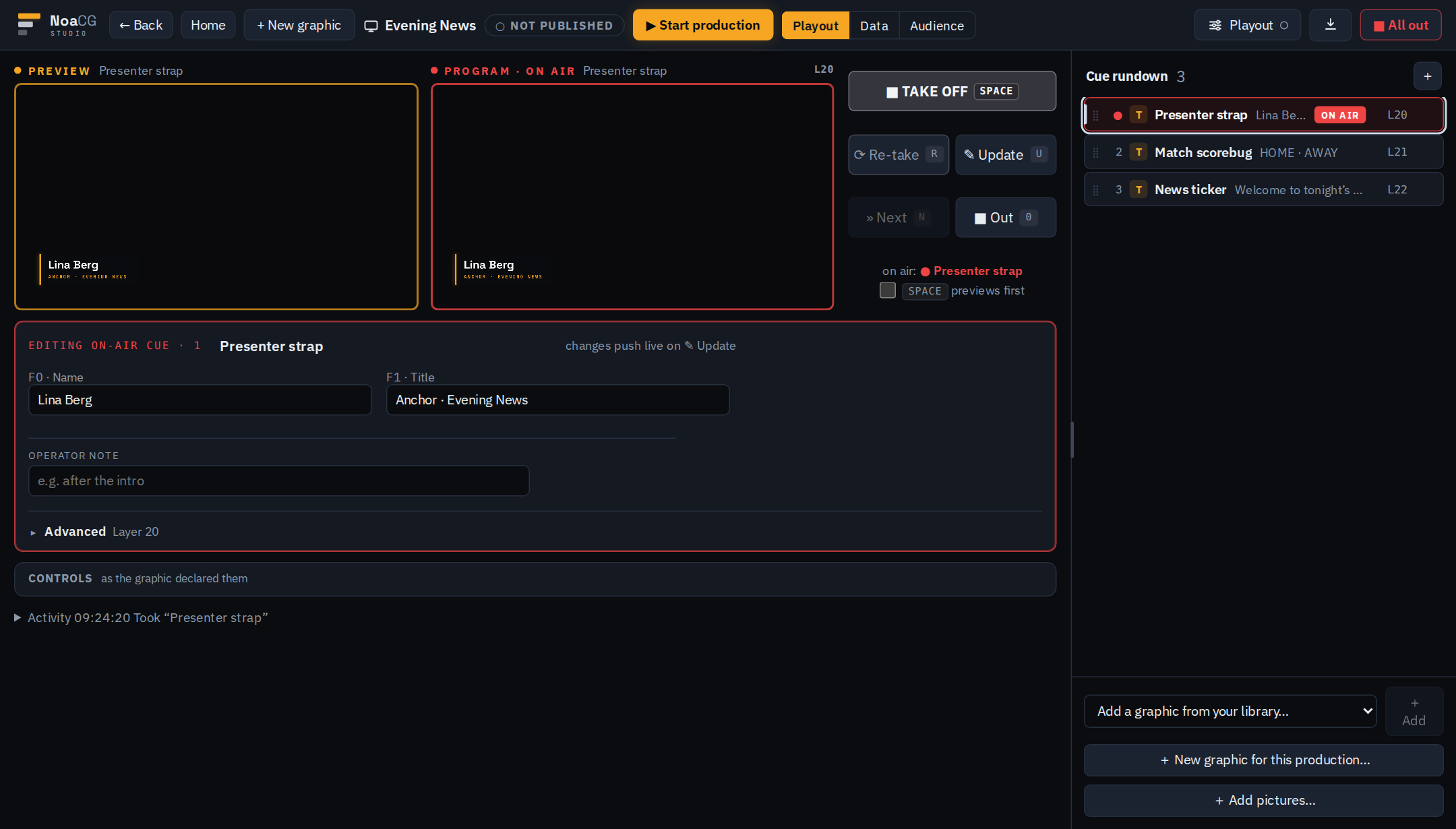

NoaCG Playout: preview and program monitors with a lower third on air, the Take, Update and Out buttons, and a cue rundown

Every graphic also exports as an EBU OGraf package, validated on export. Playing OGraf packages made in other tools is not built yet. Also in beta: making a graphic with AI in the browser, and a workspace for rendered video.

Free and open source

Everything in the studio is free, and there is no paid edition. The source is open under AGPL-3.0 and this repository is the whole product, so you can host it yourself. You need a free account only for what the hosted service runs for you, such as publishing an output URL, saving from the CLI or running AI.

The NoaCG CLI and NoaCG Bridge

The NoaCG CLI and MCP server is published to npm as @noacg/cli. It makes a graphic package (one folder that is an EBU OGraf graphic and a SPX/CasparCG template), checks it against the same gate the studio uses, takes screenshots, and saves it to your NoaCG library with a scoped agent key (noacg login).

bash

npx @noacg/cli scaffold --type scoreboard --design neutral --name "Football scoreboard" --out ./football-scoreboard
npx @noacg/cli validate ./football-scoreboard --screenshots ./shots
npx @noacg/cli save ./football-scoreboard

In Claude Code, the plugin adds the noacg-graphic skill and the /noacg:graphic command. Type this in a Claude Code session (2.1.275 or later):

text

/plugin install noacg --marketplace NoaCG/NoaCG-Studio

Codex and the optional MCP plugin: cli/plugin/README.md and cli/plugin-mcp/README.md. The full account: docs/AGENT_CLI.md.

NoaCG Bridge is the same CLI's noacg bridge command. The Windows download on noacg.studio/downloads packs it with Node, so the playout machine needs nothing installed. How it works: docs/BRIDGE.md.

Run it yourself

bash

npm install
npm run dev

The dev server puts the landing page at / and the studio at /app. The port is per checkout: node scripts/dev-port.mjs prints it (5174 in a plain clone, see docs/DEV_PORTS.md).

npm run build is the CI gate: the repository's checks, typecheck, lint and a production build into dist/.

With an empty .env the studio runs on your machine with no accounts: you can make, preview and export graphics. Accounts, sync, published output URLs and AI are optional services, each switched on by the variables in .env.example.

Documentation

User guides are at noacg.studio/docs. For working on the code:

Doc	What it covers
`AGENTS.md`	The project contract
`docs/ARCHITECTURE.md`	Layers, allowed import edges, the repository map
`docs/GOALS.md`	Direction and the current state of each outcome
`docs/SPX_TEMPLATE_FORMAT.md`	The SPX template contract
`docs/OGRAF.md`	The EBU OGraf export
`docs/STATE_MACHINE_SCHEMA.md`	What a graphic is: states, transitions, controls
`docs/CLOUD_PLAYOUT.md`	Productions, the output page and playout
`docs/README.md`	The map of everything else in `docs/`

License

AGPL-3.0, see LICENSE. Graphics you make and export are yours, with no licence obligations attached. The copyleft applies to NoaCG Studio itself: if you offer a modified version of the app as a network service, publish your changes under the same licence.

The bundled fonts are under the SIL Open Font License (src/assets/OFL.txt, copied into every export). GSAP and the Lottie player are bundled too, so an export never fetches anything from a CDN.

The cli/ package is Apache-2.0, so it can be installed into anyone's toolchain. It is a client for any NoaCG deployment; docs/AGENT_CLI.md gives the reasoning.
