MapSmith

Professional-grade GIS geoprocessing for AI agents — with provenance you can verify.

mapsmith.dev — a real terrain analysis and the manifest that came with it. Both are build products: the figure is rendered from GeoTIFFs MapSmith writes, so the page cannot drift from what the software does.

MapSmith is an open-source MCP server that gives an AI agent real GIS analysis — buffers, overlays, reprojections, zonal statistics, terrain and hydrology — executed by GeoPandas, DuckDB Spatial, exactextract and Whitebox Workflows, never written by the model. Every dataset it produces lands on disk next to a lineage manifest: inputs with checksums, the exact parameters, the CRS decisions and why, engine versions, and the deterministic checks that ran on the result.

Ask for the result. The agent picks the tools. You can check the work afterwards.

The manifest is a specified format, not MapSmith's private output: JSON Schema, a toolchain-free validator, a conformance suite, and a hundred-line emitter that never imports MapSmith. Records carry spec_version, and CI validates real MapSmith output against the spec's own validator. The specification is archived and citable as 10.5281/zenodo.22205213.

Evidence before promises: an A/B on GABench whose headline is a null result — with the analysis that took our own positive number apart — a correctness suite in its own organisation, Argleton, whose published run grades MapSmith on twenty-nine traps with answers computed on paper and has already sent six defects back here, notebooks on a real USGS DEM of Mount St. Helens, an in-chat map panel that shows the verification status of every layer it draws, and a measurement of our own tool discovery that retracted two numbers this page had already published — including the one in the bullet list below.

Quickstart

Add MapSmith to any MCP client over stdio (Claude Desktop, Claude Code, Cursor, VS Code):

{
  "mcpServers": {
    "mapsmith": {
      "command": "uvx",
      "args": ["mapsmith"]
    }
  }
}

Docker is the supported path, and confines the server to the directory you mount:

{
  "mcpServers": {
    "mapsmith": {
      "command": "docker",
      "args": ["run", "-i", "--rm",
               "-v", "/absolute/path/to/your/data:/data",
               "-e", "MAPSMITH_WORKSPACE=/data",
               "ghcr.io/mapsmith-ai/mapsmith"]
    }
  }
}

One-click installs:

or from a terminal: code --add-mcp '{"name":"mapsmith","command":"uvx","args":["mapsmith"]}'

To check it runs before wiring a client, uvx mapsmith starts the server on stdio (Ctrl-C to quit) — it speaks MCP, not a CLI, so a silent prompt means it is working.

This page describes 0.4.0, which is what that command installs. When main runs ahead of the published artifact this paragraph says so and names the difference — a reader should never have to find out by calling a tool that is not there.

Then ask your agent things like:

"Take parcels.gpkg, keep only the parcels within 300 m of the river in rivers.gpkg, and give me the result with the analysis lineage."

The Docker image includes the [raster] and [whitebox] extras. With uvx, pick your own: uvx --from "mapsmith[raster,whitebox]" mapsmith. Docker — or uvx on a machine with working wheels — is the only supported installation path: geospatial native dependencies across three OSes are a support black hole, and issues about broken local environments will be redirected here.

Two things about the image, because they change what happens on your machine: it sets MAPSMITH_WORKSPACE=/data itself (the -e above is explicit, not required) and runs as uid 1000, so pass --user $(id -u):$(id -g) if the directory you mount belongs to another user; and it is built for amd64 only, so on Apple Silicon it runs under emulation.

What you get back

Every dataset comes with the file below, written next to it as <output>.provenance.json — enough to re-run the analysis without the model that asked for it:

{
  "spec_version": "1.0.0-draft.3",
  "producer": {"name": "mapsmith", "version": "0.4.0"},
  "operation": "buffer_layer",
  "parameters": {"distance_meters": 300.0},
  "inputs": [{
    "path": "rivers.gpkg",
    "sha256": "b24b884f49eee431133d443d842557d3ed21f3978e2c4b1e8e072fd1240effe8",
    "crs": "EPSG:4326"
  }],
  "crs_decisions": {"analysis_crs": "EPSG:32632", "reason": "estimated UTM zone for metric buffering"},
  "engine": {"name": "geopandas", "version": "1.0.1"},
  "environment": {},
  "verification": [
    {"name": "crs_matches", "passed": true, "detail": "expected EPSG:4326, got EPSG:4326"},
    {"name": "feature_count_exact", "passed": true, "detail": "expected 1, got 1"}
  ],
  "started_at": "2026-08-18T10:15:03Z",
  "finished_at": "2026-08-18T10:15:04Z"
}

This block is checked against the specification's own validator by tests/test_showcase.py, because the page that says records carry spec_version had an example without one for two releases — and this is the record a third-party implementer copies.

Trimmed for the page, not for the file: the real record also carries the output's own path and hash, any geometry MapSmith had to repair, and the notes it made about how the inputs were handled — and every check says whether it was critical and, when it failed, what to do about it. get_provenance returns it for any output.

Why MapSmith

• Real geoprocessing, not map CRUD. Built on the proven open geospatial stack: GDAL, GeoPandas, Shapely, DuckDB Spatial, Whitebox Workflows and exactextract ship today (more to come: QGIS Processing via sidecar).
• Provenance by design. Every layer MapSmith produces ships with a machine-readable lineage manifest — source datasets with checksums, tools executed, exact parameters, CRS decisions, software versions, timestamps. Everything needed to re-run the analysis without the LLM is in there. No AI slop.
• The engines compute, the model orchestrates. Geometry and numbers only ever come from deterministic tool executions — never from model output.
• Semantic tools, not a tool dump — and a catalog built for thousands. 28 goal-level tools plus a searchable operation catalog, because tool-selection accuracy degrades once a few dozen tools are exposed at once, and fastest when two of them apply to the same input. Capability count has no such ceiling, so capability lives in the catalog. Search narrows it on what you declare and then hands over what survives rather than ranking it for you, because measurement said ranking is the wrong verb — see Finding the right operation.
• Model-agnostic infrastructure. Claude, GPT, Qwen, Kimi, GLM — anything that speaks MCP, cloud or local. The leverage is better contracts (typed plans, actionable error codes, a searchable catalog), not weights we would have to maintain. See the manifesto.

Tools

Finding the right operation

Those are the tools an agent chooses between. Behind them the catalog holds every operation MapSmith can perform — 74 today, and 49 of them have no tool of their own — and it is built to hold thousands. (Two of the 74 are marked planned and say so when asked: the roadmap is in the catalog on purpose, so an agent can answer "not yet" instead of inventing a call.)

The split is the design: tool-selection accuracy degrades past a few dozen exposed tools, while capability count has no such ceiling. That makes reaching scale a retrieval problem, so it is treated as one — and measured like one.

First it narrows, deterministically, on things the caller already knows. Every entry declares what data it takes (vector, raster, dataset, plan, none), what it hands back (dataset:vector, dataset:raster, answer, description), whether it demands a projected CRS, and which family it belongs to.

Measured over 118 answerable requests written by two other model families from job scenarios — a hydrologist with a flood report, a surveyor arguing with a field measurement — neither of which was shown this catalog, because a model handed the entry writes a paraphrase of the entry:

Two ranking columns, and that is a correction. This table used to carry one, computed with the default engine — which is the embedding one where its model loads and BM25 where it does not. So the published figures were a measurement of what the machine could download, and a CI run that met a 429 from Hugging Face recomputed the first row as 28% where this page said 18%. Not a flaky test: a number that had never been reproducible on a machine without the model, published under a sentence promising it could be checked.

The two also differ in a way worth seeing, and this page had it backwards until 2026-08-30. It said the embedding engine overtakes BM25 once the facets have narrowed. It does not overtake it anywhere: BM25 leads at every row of the table above, by seven to twelve points, and the gap is widest at the fullest declaration. An exact term either matches or does not, and the entries that survive a full declaration are told apart by the words that distinguish them — which is what distinguishes is for. The embedding engine earns its place on the phrasings it has never seen, not on the ranking once the set is small.

The last column is not an accuracy figure — it is a property, and the 98% rather than 100% is worth a sentence. The narrowing never drops the right operation: that is asserted per entry and holds for all 74. What the column measures is whether the surviving set was small enough to hand over WHOLE, and for a handful of requests it still is not, so those fall back to a ranked shortlist and the answer can be outside the top three. Ranking decides the order; it does not decide membership; and the 3% is the gap between "cannot lose the answer" and "can show you all of it".

The third row is the scaling wall, and we hit it in one afternoon. On 2026-08-29 the catalogue went from 51 operations to 61. Two rows of that table got worse: the commonest surviving set went from 26 candidates to 34, past the point where the whole set can be handed over, and delivered fell from 100% to 45% while found@3 fell from 48% to 36%. Adding capability had made discovery worse — the failure this page had predicted at eight hundred operations and met at sixty-one.

Raising the threshold would have postponed it by about ten operations. What fixed it is the fourth row: how many datasets you are holding. That is a fact about your situation — one layer or two — not a guess about our vocabulary, it is derivable from each operation's own signature so a test can check the declaration against the code, and it takes the median surviving set from 34 to 9. The catalogue grew by a fifth and discovery got better, but only because a facet arrived with it. That is the trade this design makes, stated rather than discovered later.

It happened again the next day, and this is what watching a curve is for. On 2026-08-30 the catalogue went from 61 operations to 71. Every ranking figure in that table fell — 28% to 25% bare, 34% to 27% on the input kind — and the delivered column of the second row fell from 48% to 27%, because more requests now leave a set too large to hand over whole. The bottom row did not move: 97%, the same as at 61. Ten more operations, no new facet, and the guarantee held, which is the first time growth has been absorbed by the facets already there. (Not «and at 51»: that bottom row is the arity facet, and dataset_inputs did not exist at 51 operations. The 100% quoted above at that size is the row above it. Two different rows under one sentence is the kind of comparison this page exists to refuse.)

And again at 74, with two operations that a caller is unusually likely to want. select_features and extract_layer are the remedies MapSmith's own error messages had been recommending, so they sit in the busiest corner of the facet space: the average surviving set went from 16 to 17 and the second row's delivered did not move. The bottom row held at 97% for the third catalogue size running. The margin to the wall is now 13. (Those are the figures as measured on 2026-08-31. They were recomputed on 2026-09-01 against human answers — see the note under the table — which moved them without any catalogue change: the surviving set reads 16 and the bottom row 98%. A paragraph about a transition keeps the figures of the transition.)

That is the shape of the trade, and it says when the next facet is due. The figure to watch is not found@3 — a ranker will always get worse as the catalogue grows, and it is a hint. It is the average surviving set at the fullest declaration, the fourth column of that table: 9 at 51 operations, 14 at 61, 16 at 72, 16 at 74. When that crosses 30, delivery stops being a property and starts being a ranking again, and the answer is another fact the caller already knows, not a bigger threshold. (It said median until 2026-08-29, and published the mean: the median at 74 is 14. The distribution is skewed — most requests leave a small set and a few leave a large one — so the two numbers say different things and the mean is the pessimistic one, which is the right one to watch.)

The requests, both labels and the harness are all in the repository: tests/data/discovery_queries.json and benchmarks/discovery_report.py, which recomputes every number above from those files with no network and no model — so they can be checked rather than believed, and tests/test_discovery_report.py fails if this page and the harness disagree. The one exception is the 69%: reproducing that needs the model that did the choosing, and the report says so where it stops.

So it hands over the set instead of picking for you. Below thirty survivors list_operations answers with status: "choose": every candidate, ordered as a hint that says it is a hint, each carrying the sentence that separates it from its neighbours. The threshold is 30 because that is where the surviving set almost always sits: over those 118 requests its median is 14 and it exceeds 30 for two of them — which is the 98% in the table above, seen from the other side. The payload is about 2,100 tokens, less than one wrong operation costs to run and undo.

(That sentence used to say the set had a median of 26 and never exceeded 30. It was false before this catalogue reached 72 operations and nobody noticed, because the test that checks this page against the harness read the table and not the prose around it. It reads both now.)

Three measurements say this is the right shape, and the third is the one that settles it:

These figures went up on 2026-09-01 because the measurement changed, not because the ranker did. Somebody who does this work answered all fifty of the requests the two model labellers had disagreed on, and a request can have more than one acceptable answer: two experienced analysts reach the same result with different tools. So a hit is now counted against every operation a professional would accept rather than against one label, and found@3 rose four to five points. Nothing in the ranking code changed. Read the other way round, the older figures were understating by that much — they scored a system as having failed when it returned the other defensible answer — and the honest description of this table is the answer is among the ones a professional would accept, which is a property, not an accuracy.

Where the secondary answers came from is recorded rather than smoothed over: the primary on each of those fifty is a human choice, and the secondaries were proposed by a third model and adopted wholesale rather than judged one at a time. Two different strengths of evidence, and the file says which is which.

The two model figures are dated: the labels were written on 2026-08-28, against a catalogue of 51 operations. It now has 74, so for any request whose right answer is one of the 23 added since, neither labeller could have been right — the answer was not in the catalogue to name. Measured on the first four requests a person has answered by hand, two of the four have both labellers wrong, and both of those two name operations that did not exist on the 28th. So "both labellers wrong" and "both labellers chose badly" are not the same number, and the honest thing is to say when the labels were made rather than to quietly benefit from the difference. Human answers are replacing them one at a time — benchmarks/ingest_answers.py is how they get in, and every figure above is computed against a human answer where there is one.

All three are over the same 118 requests, which matters: agreement measured over all 155 requests in the file is 68%, and the difference is the 21 pairs where both labellers agreed a request was unanswerable — true, and the easy half. Quoting that 68% beside a 58% computed over the 118 would be comparing two populations, which this table did for half a day.

The last row is a ceiling, not a baseline, and the second row sits at it rather than below it. When two competent labellers disagree three times in ten about which operation answers a request, "the right one" is not a single value to rank toward, and a system scoring above that is fitting one annotator rather than getting better. Two GIS analysts with thirty years each do the same job with different tools and neither is wrong.

That is why the answer is a set and why its reason field says, in words, that the order is a hint and that two defensible candidates are a question for the person who made the request. The caller — an agent with the conversation in context — knows things no ranking can. Where it does not, the human does.

The remaining honesty: the ceiling was measured between two language models. Whether human GIS analysts agree with each other more, less, or about the same is unmeasured, and until it is, these numbers are reported as agreement with model-written labels and never as accuracy.

The family is the one facet that orders instead of filtering, and that is a correction. It used to be a hard filter like the others. It is not like the others: input kind and projected-CRS are facts about the data in hand and output kind is what the caller wants, but family is a guess about our taxonomy, which the caller cannot see. Measured, it removed six candidates out of sixteen — and when the guess was wrong it removed the right operation, with no error, leaving a confident answer assembled from neighbours. Every request in the independent set has 4.4 plausible families. That is the silent-failure class Argleton measures in other people's systems, sitting in our own discovery layer, so it now sorts: declaring the family lifts it to the front and costs positions when wrong, never the answer. The hard cut stays available on catalog.applicable, where asking for it means it.

We do not need a model to extract those facets, because the caller is one. An MCP client is an LLM with the context we lack — it knows what file it is holding and what it is trying to produce. So list_operations asks for them in its schema, and its description leads with why. This is the same shape as LlamaIndex's Auto-Retrieval or LangChain's Self-Querying, minus the model those have to host: here it is already on the other end of the protocol. A geographic raster is never offered slope, because slope refuses one — a property of the data, checked in code, no model in the loop.

Then it ranks, with two engines that both always run. list_operations takes engine: auto (the default), lexical, or vector. Every result carries the engine that produced it, because a BM25 score of 10.03 and a cosine of 0.38 are not on the same scale.

The default was lexical until the measurement said otherwise, and the measurement is the interesting part. Golden queries written by whoever wrote the catalog share its vocabulary, so they test word overlap dressed as retrieval: on those, BM25 scores 100% found@1 and embeddings 60%. Re-phrased the way somebody with a problem actually phrases it — "the coastline is 400000 nodes and the browser dies" rather than "simplify the geometry" — the finding reversed, on a catalogue of fifty-one entries. It has since reversed back, and both engines degrade as the catalog grows:

This table used to say the opposite, and the reversal is the finding. Published at 10/30/51 it read 78/83, 47/65, 40/55 — embeddings ahead at every size — and the sentence under it said BM25 degrades faster, which is why the embedding engine became a dependency rather than an extra. Recomputed today the crossover has moved: embeddings still lead on ten entries, and from thirty up BM25 leads by a margin that widens with size. Part of that is the catalogue itself, because the distractors are drawn from it and it has grown from fifty-one entries to seventy-four — which is the point rather than a caveat. The near-neighbour effect the eight-hundred-operation test predicted has arrived in our own catalogue, and the two tables that used to disagree now agree.

The curve is recomputed by tests/test_retrieval_degradation.py and compared with this table, so it cannot go stale again in silence — which it did for three catalogue sizes.

And that finding does not survive being scaled up — measured the same day it was published. The distractors above are drawn from our own seventy-four entries, which are semantically spread out. Growing this catalog means adding near neighbours: hundreds of raster and terrain operations that resemble each other. Re-run against 800 real GIS operations, taken from a library that ships them with their own descriptions, the ranking reverses and the embedding engine degrades faster:

Embeddings blur near neighbours; an exact term either matches or does not. These two measurements used to disagree, and both were kept because they answered different questions: which engine suits the catalog we have, and which survives the catalog we plan. They agree now — the near-neighbour effect this one predicted has arrived in our own catalogue, so BM25 leads at both scales, and the second question has the answer neither. The embedding engine is still the default, and the measurement that made it one no longer says so: that is a decision to take rather than a number to quietly restate. At 800 entries the better engine is wrong two times in three, so scale will not be bought by choosing a better ranker. test_retrieval_at_scale.py keeps the projection under measurement rather than under opinion.

And the narrowing does not scale on its own either — this page claimed otherwise and was wrong. It said the facets leave sixteen candidates at 800 operations just as they do at 200. The sixteen is real and it is produced almost entirely by family: those 803 operations are all raster-in, raster-out, so input kind and output kind cut nothing at all, and only the taxonomy does — a choice among 43 families that the caller has to guess. Which is exactly the facet that must not filter.

So the open problem has a sharper shape than "ranking is hard". What is needed at a thousand operations is more facts a caller can state without knowing our taxonomy — how many inputs an operation takes, whether it changes geometry or only attributes, whether the output has the same number of features as the input. Those are structural properties of the operation, they are checkable against the code rather than declared by hand, and they separate the pairs a bag of words cannot: spatial_join from overlay_layers, flow_accumulation from extract_streams. That work is not done, and until it is, the honest claim is the measured one: the guarantee above holds at seventy-four operations, not at eight hundred.

How an entry has to be written is a published specification, not a convention: docs/catalog-entry-spec.md, with a normative JSON Schema that every entry validates against in CI. Each field is there because a measurement said so — including the two that measured to nothing and are documented as such, because a spec that only reports what worked is an advertisement.

And discoverability is a contract per operation, not an average. A catalog-wide 90% found@3 over fifty entries means five are invisible and the average will not say which. So every available entry is probed with its own first worked example, with its own facets declared (test_discovery_contract.py, parameterised over the catalog, so a new operation is under contract the moment it is added). Two things are required of it: the facets the entry declares must never drop that entry, and the entry must reach the caller.

Its rank is no longer one of them, and removing that is the point. The contract used to demand the top three. That looks like a discovery contract and is a ranking contract, with one bad property: the only way to repair a failure is to reword the entry until the ranker likes it. Fifty entries tuned that way score nineteen points better on examples we wrote than on requests written by anyone else — that gap is measured, and it is where a published 70% on this page turned into 51% overnight. A test whose repair procedure is fit the text to the scorer manufactures the number it reports. What remains under contract is the part that is deterministic and ours; rank inside the delivered set is still measured, and no longer fails a build.

The old form still earned its place the first time it ran. centroid_layer advertised “label points for a polygon layer” and ranked below point_on_surface. The ranking was right: a centroid can fall outside its own polygon, which is Argleton trap 014 — our catalog was recommending the defect our own suite measures. The example changed, not the score.

And when the two engines agree on nothing, the search says so instead of answering. This is the failure that measurement turned up in our own product: asked "send an email to my accountant", the embedding engine returned idw_interpolation with the same confidence as a real answer — a silent error in the layer whose job is to prevent them. A similarity threshold does not fix it, because there is no line to draw: "convert this mp4 to a gif" scores above sixteen of twenty genuine queries. What does separate them is the two rankers landing on nothing in common — mean top-3 overlap 0.90 of 3 when an answer exists, 0.18 when it does not. So a query the catalog cannot place comes back as status: "unsure", carrying both engines' guesses and the question that narrows the catalog deterministically: what kind of data do you have. It fires on 9 of 11 unanswerable queries and suppresses 1 correct answer in 20.

And when the facets leave nothing at all, it says which declaration did it. Zero candidates used to fall through the branch above and come back as "0 operations survive, which is few enough to read" — prose that means nothing and, worse, an empty candidate list, which an agent reads as MapSmith cannot do this. It was found by the discovery log below on its first real session: "how much land is in each of these parcels" with produces="answer" left nothing, while measure_area computes exactly that and declares dataset:vector because it writes the areas into a column. So that case is now its own answer — each declaration with the number of operations that would survive without it, smallest first — and it is arithmetic, not ranking.

Below the choose threshold it stops refusing and becomes a warning instead — order_is_weak on the delivered set. Refusing made sense while the search was deciding; handing over every candidate is not deciding, so the disagreement reverts to being evidence about the order, which is the only thing it was ever evidence about.

The applicability filter above runs first for both engines — otherwise the guarantee would only be true of one of them, and there is a test that says so.

Then it runs, tool or no tool. Most catalog operations have a tool of their own; the newer ones increasingly do not, and run_operation(operation, arguments) runs those by name. This is deliberate: capability count has no ceiling, but the exposed tool list has one, so the catalog is allowed to grow faster than the tool list. Arguments are checked against the catalog before anything executes — unknown operation (with a "did you mean", from the same ranking), missing or misnamed argument, wrong type, path outside the workspace — and every error carries a stable code. Execution goes through the same path as execute_plan, so an operation cannot behave one way alone and another way inside a plan.

Both engines embed the identical document text (catalog.document_text), so a comparison between them measures the ranking and nothing else. Three test files keep the rest under measurement rather than under opinion: the degradation curve over our own catalog, the projection against 800 real neighbouring operations, and a discoverability contract per entry. That is what turns the scaling limit into a curve you can watch rather than a number someone guessed.

Determinism is the reason for building it this way rather than reaching for a hosted embedding API: that would make tool discovery a network call whose answer can change under you, and an agent that finds a different tool tomorrow for the same question is not reproducible, whatever its manifest says. The one network access left is the model download on first use, at the pinned revision; after that the vector engine is local, and an install that never makes it keeps BM25, and the engine field of every result says which one answered.

Making it better with your own requests, without a model that drifts

The 155 requests behind those percentages were written by two language models. They are the best set we could build without users, and they are not what users ask: a real request names the file somebody actually has and the words their field actually uses.

So MapSmith can record its own. Set MAPSMITH_DISCOVERY_LOG to a file path and each search is written as one JSON line together with the operation that was run after it — the query, the facets declared, which engine ranked it, every candidate delivered, and where in that list the chosen one sat:

MAPSMITH_DISCOVERY_LOG=/data/discovery.jsonl   # then work normally for a while
python benchmarks/log_to_cases.py /data/discovery.jsonl

For the part that needs eyes rather than a pipe, there is a dashboard — see below.

log_to_cases.py prints those lines as rows shaped like tests/data/discovery_queries.json and flags the two that matter: a run the ranking did not put first (the answer was on screen and the order was wrong) and a search nothing followed (a request the catalog did not serve). It prints; it never writes. Which rows become test cases is a person's call.

None of this trains anything, and that is the design. A ranker that learns from what callers pick learns from an ordering it produced: the operation shown first gets picked more, gets learned as correct, gets ranked first harder — a confident answer nothing contradicts, which is the exact failure this product exists to measure. The model revision stays pinned, held there by a golden-vector test, so the same query gets the same answer next year. What improves instead is the catalog text — a phrasing, a distinguishes that does not distinguish — as a diff somebody can read and revert. That loop is not the weak option: it is what took found@3 from 18% to 58% and delivery to 98%.

The log is off unless the variable is set, holds queries and operation names and nothing else (no dataset paths, no arguments), is guarded by MAPSMITH_WORKSPACE like any other path MapSmith writes, and never leaves the machine — nothing reads it back. Your queries describe your work; treat the file that way, and delete it when you are done.

One question, end to end

Everything above is about one step. Here is a whole question — six parcels, a river, an elevation grid, and five operations picked out of 74 — with the search, the arguments and the verification of each step as they were actually recorded.

Nothing in this section is drawn. benchmarks/worked_example.py builds fixtures whose answer can be worked out on paper, asks the catalogue in the words of the problem, validates and runs the plan, reads the manifests, and writes what follows; tests/test_worked_example.py fails if this page and that script disagree. The position column is BM25's rather than the default engine's, because a published figure should not depend on whether a model download succeeded on the machine that built the page — the narrowing, which is the point, is identical on both. Two things worth watching: the middle column, where the catalogue goes from 74 operations to a handful the caller can read; and the CRS column, where every metric operation says which coordinate system it moved the data into and why.

flowchart TB
  ASK["<b>Parcels within 1.5 km of the river whose mean ground elevation is at most 120 m, with the elevation and the ground area of each</b>"]
  ASK --> PLAN{{"plan validated<br/>before anything runs"}}
  PLAN -. "rejected: FORWARD_REFERENCE" .-> BAD["'mask_path' references '$buffer' which runs later — move step 'buffer' before 'near'"]
  BAD:::bad
  BUFFER["<b>buffer_layer</b><br/>74 operations &rarr; 29 candidates &rarr; chosen<br/>CRS EPSG:32610<br/>9/9 checks"]
  PLAN --> BUFFER
  NEAR["<b>clip_layer</b><br/>74 operations &rarr; 14 candidates &rarr; chosen<br/>12/12 checks"]
  BUFFER --> NEAR
  HEIGHT["<b>zonal_statistics</b><br/>74 operations &rarr; 4 candidates &rarr; chosen<br/>CRS EPSG:4326<br/>7/7 checks"]
  NEAR --> HEIGHT
  AREA["<b>measure_area</b><br/>74 operations &rarr; 29 candidates &rarr; chosen<br/>CRS WGS 84 &#40;ellipsoidal&#41;<br/>10/10 checks"]
  HEIGHT --> AREA
  FILTER["<b>select_features</b><br/>74 operations &rarr; 29 candidates &rarr; chosen<br/>CRS EPSG:4326<br/>10/10 checks"]
  AREA --> FILTER
  OUT[["3 parcels, each with elevation and ground area"]]
  FILTER --> OUT
  classDef bad stroke-dasharray: 4 3

Every step is inside the plan, the last one included: select_features took 4 rows and returned 3, with a manifest like every other write. This step used to run outside the plan, because the only operation that could answer it was run_sql — which takes its inputs inside a SQL string, declares zero datasets, and therefore cannot join the plan's dataflow. That boundary is deliberate and has not moved: substituting $step into arbitrary strings would be a grammar in which a planner assembles a path out of text. What changed is that it is no longer the only way to ask.

The answer, which can be worked out on paper before MapSmith sees the files: the parcels are squares of 0.0015° at 46.2°N, so each is about 119 m by 167 m, and the elevation ramps west to east across the fixture.

The rejected plan is the honest half. Steps in the wrong order are the dominant failure class in the agent benchmark, so the example includes one and shows what the validator says about it, before any file is touched. It earned that place while this was being written: the first version of the plan passed distance_m where the operation declares distance_meters, and the validator named the argument and listed the three it accepts.

Formats

GeoParquet 2.0 moves geometry into Parquet's own logical types and makes the geo key optional, so "a Parquet file with geometry in it" no longer implies that key. MapSmith reads the CRS from the logical type when it is the only place it exists — the spec default, an authority string, projjson:<key>, or the whole PROJJSON document inline, which is what DuckDB writes. run_sql emits both layers (geoparquet_version 'BOTH'), so one output file satisfies a 2.0-native reader and a GeoPandas 1.x one; the GeoPandas writer path stays 1.x because GeoPandas 1.1 caps schema_version there.

One declaration is deliberately refused rather than guessed: srid:<n>. The spec defines it as a numeric identifier and names no authority — its own example is srid:0 — so reading it as EPSG:<n> would be inventing a coordinate system and recording it as fact.

Choosing the stack, and never swapping it in silence

MAPSMITH_STACK picks the geoprocessing stack once, at the start. The default is opensource — GDAL, GeoPandas, DuckDB, Whitebox — and needs no licence. esri routes to ArcPy on a machine that has ArcGIS Pro installed, through a subprocess and files, because ArcPy lives in Pro's own interpreter. MapSmith ships no part of it and takes no licence to look: what a session can reach is read from the metadata the installer left on disk, and server_info reports it, so a caller learns it before planning five steps around it rather than at the first failure.

The rule that makes the choice worth making is what happens at the edges. When the chosen stack cannot do something, MapSmith says which of three things is true — there is no such tool, this licence tier does not include it, or it would need an online service — because those lead to three different decisions and one word for all of them leads to none. Where a route exists and cannot run, the manifest names the engine that actually produced the numbers and why the preferred one did not: an engine quietly replaced by another is a record that is true and a number nobody chose.

One operation is routed today: buffer_layer. Everything else runs on the open source stack whatever MAPSMITH_STACK says. That is the state of the wiring rather than a property of the design, and it is written here because the alternative was a defect: a table declaring three routes while one operation consulted the router meant requesting the stack ran two of them elsewhere with nothing in the manifest saying so. It was fixed before this release by shortening the table, not the sentence.

Two things this is not. It is not a comparison: MapSmith calls what you have installed, and this repository publishes no scores for anybody's engine but the ones Argleton grades in public. And it is not equivalence: two further operations were measured against both stacks on the same fixture and deliberately left unrouted, because matching geometry is not the whole story — on a dissolve the other stack drops every attribute, so a pipeline that dissolves and then reads a column would find the column on one stack and nothing on the other. That is a difference to record before it is a route to offer.

Verification, in and out

Every tool that writes a dataset also writes <output>.provenance.json beside it and verifies its own work — CRS agreement, geometry validity, raster dimensions, count and extent invariants — recording the results in the manifest before raising anything, so the audit trail survives the error.

Verification runs on the way in as well. Before an operation touches your data, MapSmith checks the failures that produce plausible junk: an input with no CRS is refused outright, because metric maths on unknown units is how a confidently wrong answer gets made; an empty input, or two layers whose extents cannot possibly overlap, comes back as a named warning with a hint — in the tool result, not only in the manifest, so the agent sees it instead of assuming success. (The join fast paths, DuckDB and SedonaDB, only ever receive inputs that already share a known CRS; they verify their output and diagnose an empty join.)

An output whose geometry is mechanically broken — typically invalidity inherited from an invalid input — is repaired deterministically: make_valid, at most two rounds, written to a temporary file and swapped in only once it is complete, and skipped rather than risked where a rewrite could drop data (a multi-layer GeoPackage is refused, not rewritten — extract_layer copies the one you mean into its own dataset, with the container and the layers left behind named in its manifest). Every attempt lands in the manifest and in the tool result, because a repaired output must never look like one that was right the first time. Failures that need judgement are never "fixed": an empty result, or geometries eroded away by a wrong distance, come back as warnings with hints for the agent to act on.

And a manifest can say which configuration produced the numbers — environment, section 3.8 of the manifest specification, empty when there is nothing to say. What made it concrete: a GeoTIFF and the .aux.xml file beside it can declare different georeferencing, and GDAL prefers the sidecar by documented design, because that is how somebody overrides georeferencing they know to be wrong. Both readings are the library behaving exactly as written, and on one fixture the same file gives an area four times larger and an origin a hundred kilometres away. There is nothing upstream to fix and everything to state, so describe_dataset reports both sources when a raster has two, and nine operations that read a raster's grid directly refuse instead — zonal statistics, resampling, clipping, reclassification, band maths, reprojection, band extraction, band statistics and locating an extreme cell — naming both readings and saying how to choose. Describing is different from computing: a file with two georeferencings is a thing to be told about, not a coin to flip. This is the multi-layer refusal (#29) on a second axis — the format's default answering a question the caller never asked.

The terrain and sampling operations do not refuse yet, and saying "any operation that computes" would be the promise-with-no-caller this release already found once: the terrain engine catches the same file by a different route, because it compares its own reading of the grid against GDAL's and stops when they differ, but its message names neither the sidecar nor the way out. Sampling a raster at points does not catch it at all. Extending the refusal to the remaining raster operations is on the roadmap below.

See results inside the chat

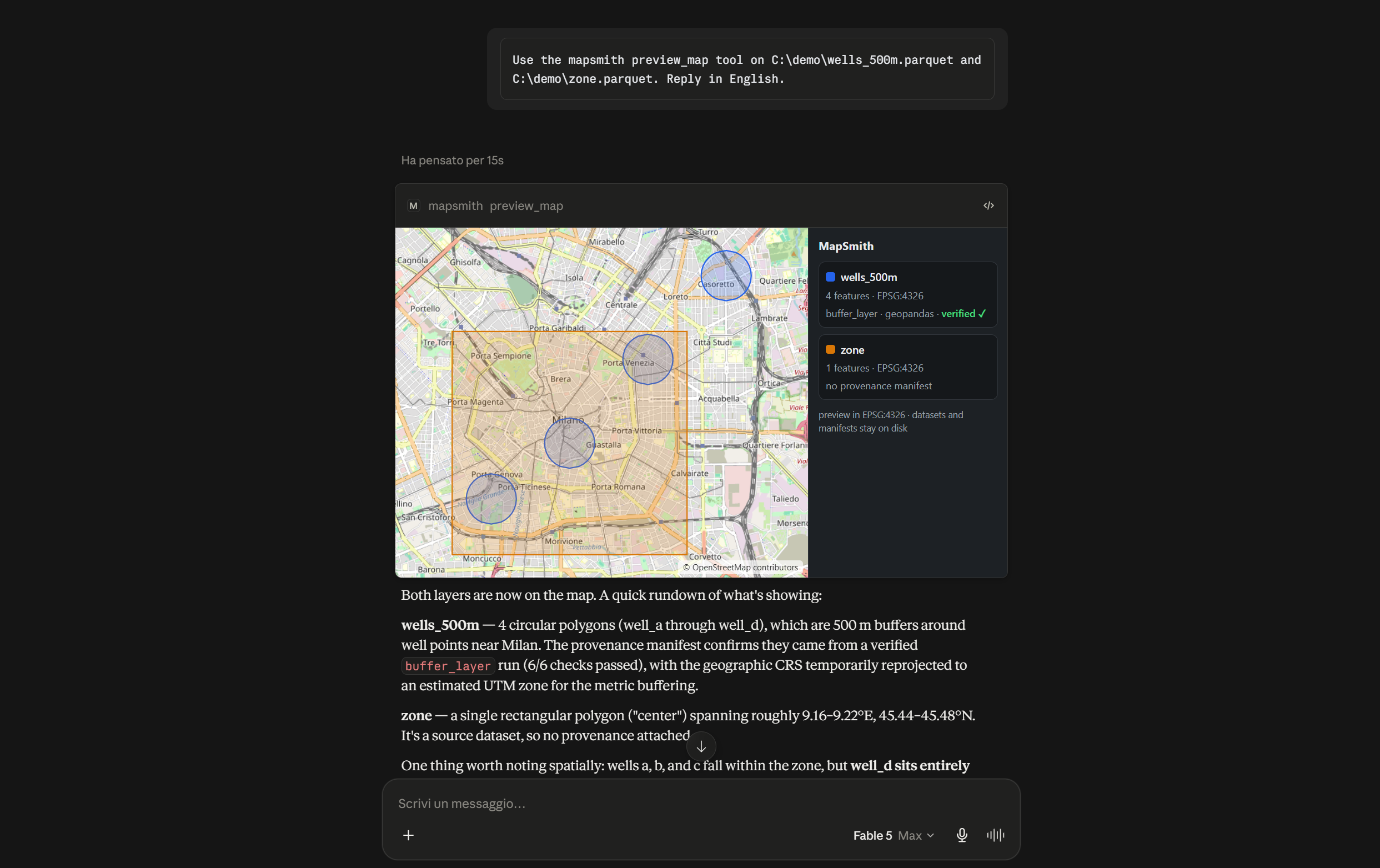

preview_map renders your layers on an interactive map panel inside the chat — pan, zoom, toggle layers, and read each layer's provenance card (operation, engine, and one of three honest states: verified ✓, verification failed, or not verifiable when no critical check ran) right next to the geometry it explains. Field-tested on Claude Desktop; it renders in any client that implements the official MCP Apps extension, and on clients without it the same call returns the preview as structured data.

The panel is self-contained — no CDN, no bundled libraries, no telemetry — with one outbound request named here rather than buried: the OpenStreetMap background tiles, which reveal the map view you are looking at (never your data) and which the panel drops to a plain backdrop when the host blocks them. The preview is deliberately lossy (simplified geometry, capped feature counts): the dataset of record stays on disk with its manifest.

Plans: reject wrong analyses before they run

In GISAgentBench — 349 practitioner-sourced tasks over 128 GIS APIs — the best frontier agent completes 32.7% of tasks under strict scoring, and planning defects dominate the failures: missing operations in 28.3% of failed runs and wrong operation order in 18.4% (multi-label, so up to ~47% involve a planning mistake), against 7.8% for parameter errors. MapSmith attacks this where it is cheapest: the agent submits a typed plan, and static validation rejects unknown operations (with suggestions), missing arguments, forward references, absent input files and CRS-unsuitable steps before anything executes — with machine-actionable error codes the agent can repair.

{
  "goal": "buildings within 300 m of rivers",
  "steps": [
    {"id": "buf", "operation": "buffer_layer",
     "arguments": {"input_path": "rivers.gpkg", "distance_meters": 300,
                   "output_path": "rivers_300m.parquet"}},
    {"id": "cut", "operation": "clip_layer",
     "arguments": {"input_path": "buildings.parquet", "mask_path": "$buf",
                   "output_path": "at_risk.parquet"}}
  ]
}

"$buf" consumes the output of step buf; references may only point backwards, so plans are acyclic by construction. validate_plan also simulates the CRS of every intermediate dataset from the real input files. execute_plan then runs the chain with per-step provenance plus a plan-level manifest (<output>.plan.json) fingerprinting the exact plan that produced the result.

Confinement

UNC hosts and NTFS alternate data streams are refused in every path argument of every tool call, before anything touches the filesystem (on Windows even an existence check on a UNC path talks to an attacker-chosen host). Remote and virtual forms — GDAL /vsi*, https:// COGs — are refused by default since 0.2.2 and need MAPSMITH_ALLOW_REMOTE=1; a workspace refuses them whatever that setting says (details below). Validated plans are stricter by design and reject every non-local form, opt-in or not.

Set MAPSMITH_WORKSPACE=/data to confine the server to one directory:

• every path argument of every tool must resolve inside the workspace (checked at the MCP boundary, and again by plan validation with stable error codes);
• the run_sql DuckDB connection is sandboxed in the engine itself, because SQL text is out of reach of a textual path check: filesystem whitelisted to the workspace (allowed_directories + external access off, which also covers GDAL-backed ST_Read), memory and temp disk capped (MAPSMITH_DUCKDB_MEMORY, default 4GB; MAPSMITH_DUCKDB_TEMP_LIMIT, default 8GB), configuration locked. SQL can name any path it likes; the engine refuses to open it.

MAPSMITH_DISCOVERY_LOG is the one path MapSmith writes to that no tool argument names, so it goes through the same check: outside the workspace it is refused, and the refusal disables the log and says so on stderr rather than failing the search that triggered it.

Without a workspace, file access is deliberately unconfined — fine for a local stdio server on your own files — and plan validation flags run_sql steps with a SQL_NOT_SANDBOXED warning. Code execution is closed in both modes, and since 0.4.0 the layer that closes it is the right one: INSTALL and LOAD in a statement are refused outright, because an INSTALL is an HTTPS fetch of a native binary run in this process on SQL a model wrote. Until 0.4.0 only the implicit forms were off, and an audit installed DuckDB's aws extension and read this machine's real cloud credentials back through a tool result — the whole story is in SECURITY.md, including why none of the four existing layers saw it. Extensions already loaded keep working, spatial included; to acquire others, name them where the agent cannot reach: MAPSMITH_ALLOW_EXTENSIONS=postgres,azure in the environment of the process that starts the server. Behind that, community extensions stay off (shellfs turns a filename into a shell command), unsigned extensions are refused, DuckDB's HTTP and S3 filesystems are disabled, and the configuration is locked.

The network is closed too, unless you open it. Remote and virtual forms — GDAL /vsi*, https:// COGs — are refused by default in path arguments and inside run_sql text, because the path is written by the model rather than by you: a third-party dataset carrying "the updated layer lives at https://evil.tld/x.gpkg" was otherwise enough to have GDAL parse attacker-chosen bytes in-process. Set MAPSMITH_ALLOW_REMOTE=1 to allow them — cloud-native data is a real use case and the capability is gated, not removed. A workspace refuses them regardless, since containment and "fetch whatever URL the model names" cannot both be true. The test suite asserts every branch by counting requests at a loopback server (tests/test_duckdb_sandbox.py). The full threat model — and what is explicitly not covered — is in SECURITY.md.

Fine print, because it changes how you deploy this: the path jail assumes a single trusted writer of the workspace filesystem (paths are resolved at check time, so a symlink swap by another local process is out of scope); the DuckDB spatial extension is fetched once per environment by MapSmith itself, through the Python API rather than by any statement, so on air-gapped machines pre-install it (python -c "import duckdb; duckdb.connect().install_extension('spatial')") before locking the network down; and the HTTP transport has no authentication in this release, so keep it on loopback or a trusted network. For real isolation, run the container and mount only the data you want it to see.

The dashboard

Everything this project knows about itself is computed somewhere and most of it is printed once and lost, which is how a number ages into a claim. benchmarks/dashboard.py gathers it into one self-contained HTML file — no CDN, no fonts, no analytics, works with the network off:

python benchmarks/dashboard.py --log /data/discovery.jsonl --argleton ../argleton

• Operations — every entry, and whether a caller actually reaches it. Asked twice: with words alone, and with the facets a caller knows. Three outcomes are kept apart — a rank, an answer that did not contain the entry, and a search that declined because the two rankers shared nothing. Collapsing the third into the second is the first thing this page got wrong about itself, and it drew ten working operations as broken.
• Search quality — the facet ablation for both rankers, and the degradation curve as the catalog grows, which is the measurement the embedding engine became a dependency for.
• Traps — Argleton's families and what each engine does with them, MapSmith included and not flattered. With --argleton <path> it reads a checkout and shows the per-family detail; without one it falls back to the vendored citation and says so.
• Answer the open questions — the requests where the two model labellers named different operations, and the cases the discovery log recorded, answered by clicking. The percentages recompute against your answers as you give them, and they come back out as JSON. This is the open question the published figures rest on: two labellers agreeing 70% of the time is the ceiling of a task with no single right answer, and the only way past it is somebody who has done the job.
• Trend — each generation appends a row beside the page, so the numbers are a series rather than a snapshot. Identical consecutive rows are dropped: rebuilding five times must not manufacture a trend.

It is a snapshot — a new operation or a new trap appears when it is generated again — and regenerating keeps every answer already given, because answers are stored against the text of each question rather than its position.

We measured whether this actually helps

Claims about agent performance are cheap, so docs/benchmarks.md reports an A/B on GABench — 57 executable GIS tasks over a 133-tool server, scored by its deterministic evaluator — where the only variable is whether the agent's typed plan is validated before the solver runs.

The honest headline is a null result, on a frontier model and on a small one, and the interesting part is why:

Haiku looks like a clean win until you notice the gate only fired on 4 of 57 plans, and that the 53 tasks it never touched moved by just as much: the aggregate delta is run-to-run variance, and measuring that noise floor (2–5 points per metric on a single repetition) is the reusable result. What survives is narrower — on the plans it did repair, tool selection improved by +0.19 TAO — and it points at where the failures actually are: PEA around 0.4 in every arm, i.e. wrong parameters and missing outputs at execution time, which is why MapSmith enforces its plans at the execution boundary and verifies inputs and outputs at runtime rather than advising an agent that improvises.

Three further arms then measured the configuration MapSmith actually ships — the plan enforced, no improvisation between validation and execution — over 375 runs, and the result cuts both ways: enforcing reproduces its own score 3–18× more tightly than an improvising solver, and it does not beat it on accuracy (parity on tool selection, measurably worse on ordering). One of those arms also refuted a conclusion this page had published two arms earlier; the correction is kept in place rather than edited away.

The harness is in benchmarks/gabench-ab/, including the split_analysis.py that took our own win apart and the rep_analysis.py that bars every delta against a measured noise floor.

Notebook gallery

Three executable walkthroughs in examples/: verified buffer+clip with provenance manifests, terrain and hydrology on a real 520×520 USGS DEM of Mount St. Helens, and a deliberately wrong plan rejected before execution and then repaired. The terrain notebook also shows what happens when reality bites: that DEM is stored with the standard TIFF predictor, which Whitebox Workflows 2.x does not undo when reading (upstream report), so MapSmith detects it, converts the input first, and discloses the workaround in the manifest.

Architecture

 AI agent (Claude / ChatGPT / Copilot / your app)
        │  MCP (stdio local · Streamable HTTP remote)
        ▼
 ┌─────────────────────────────────────────────┐
 │ MapSmith server                             │
 │  · semantic tools + operation catalog       │
 │  · parameter validation, CRS discipline     │
 │  · provenance recorder (lineage manifests)  │
 ├─────────────────────────────────────────────┤
 │ Engines                                     │
 │  · vector: GeoPandas/Shapely (built-in)     │
 │  · SQL/analytics: DuckDB Spatial (built-in) │
 │  · heavy joins: SedonaDB ([sedona] extra)   │
 │  · zonal stats: exactextract ([raster])     │
 │  · terrain/hydro: Whitebox NG ([whitebox])  │
 │  · qgis_process / GRASS sidecar (roadmap,   │
 │    GPL-isolated via subprocess)             │
 └─────────────────────────────────────────────┘

When not to use MapSmith

• You need an authenticated remote server today. The Streamable HTTP transport has no authentication in this release: anyone who can reach the endpoint can run every tool against everything the process can see. Loopback or a trusted network only (SECURITY.md).
• You want a sandbox for arbitrary agent code. MapSmith confines paths and the SQL engine; there is no code-execution tool yet, and a path jail is not a container.
• You need cartography. No styling, no layouts, no print composer. Outputs are datasets, plus a lossy read-only preview panel — not maps you publish.
• Your data lives in a database. MapSmith reads and writes files (GeoParquet, GeoPackage, anything GDAL opens). There is no PostGIS engine and no database catalog — the [postgres] extra is for the optional job ledger, not for data.
• Your data lives in object storage. Since 0.2.2 remote and virtual paths are refused unless you set MAPSMITH_ALLOW_REMOTE=1, and refused whatever that setting says under a workspace — which is what the container runs with by default. DuckDB's own H
